1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2002
4
Trim
California Stone/Metal PI
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
F.fork-R.shock absorber
by
Front wheel
Front fork
1
1
1
2
3
4
5
5
6
6
7
8
10
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
28
29
30
31
32
32
33
33
34
34
35
36
37
38
38
1
Vis M8X30
GU98622430
£1,58 Unit Price incl. VAT
2
Cavalier
GU03500645
£25,38 Unit Price incl. VAT
3
Vis M10x60
GU98052560
£5,32 Unit Price incl. VAT
4
Lower U-bolt
GU03500245
Not Available
5
Cup
GU27530505
Not Available
6
Rubber spacer
GU27530503
Not Available
7
Téte fourche noir
GU03493145
£334,57 Unit Price incl. VAT
8
Bague
GU03498100
£25,97 Unit Price incl. VAT
9
Spacer
GU03530503
Not Available
10
Ecrou M10X1,5
GU92630110
£4,01 Unit Price incl. VAT
11
Base fourche noir
GU03494045
£299,96 Unit Price incl. VAT
12
Plug cpl.
GU03530548
Not Available
13
O-ring
GU03530541
£0,59 Unit Price incl. VAT
14
Tige
GU03530549
£69,98 Unit Price incl. VAT
15
Ring
GU03530550
Not Available
16
Pad
GU03530551
Not Available
17
Tuyau précharge
GU03530552
£15,56 Unit Price incl. VAT
18
Ressort
GU03526600
£71,29 Unit Price incl. VAT
19
Sleeve
GU03525440
Not Available
20
Lower bush
GU03530510
Not Available
21
Return spring
GU03530553
Not Available
22
Dust cover
GU03530524
Not Available
23
Stop ring
GU03530525
Not Available
24
Gasket ring
GU03530526
Not Available
25
Cup
GU03530527
Not Available
26
Upper bush
GU03530528
Not Available
27
Tige gauche cpl.
GU03490745
£323,04 Unit Price incl. VAT
28
Chemise G.noir
GU03522645
£222,67 Unit Price incl. VAT
29
Tige droite cpl.
GU03490645
£323,04 Unit Price incl. VAT
30
Chemise D.noir
GU03522545
£213,43 Unit Price incl. VAT
31
Vis M6X40
GU98680340
£1,26 Unit Price incl. VAT
32
Washer
GU03530529
Not Available
33
screw M10x30
GU03530530
Not Available
34
Tampon de fond
GU03530521
£63,26 Unit Price incl. VAT
35
Vis
GU98370619
£1,58 Unit Price incl. VAT
36
"Décalco ""Aquilia"""
GU01517700
£35,30 Unit Price incl. VAT
37
Rondelle
GU95005307
£1,26 Unit Price incl. VAT
38
Bouchon
GU23943410
£3,06 Unit Price incl. VAT

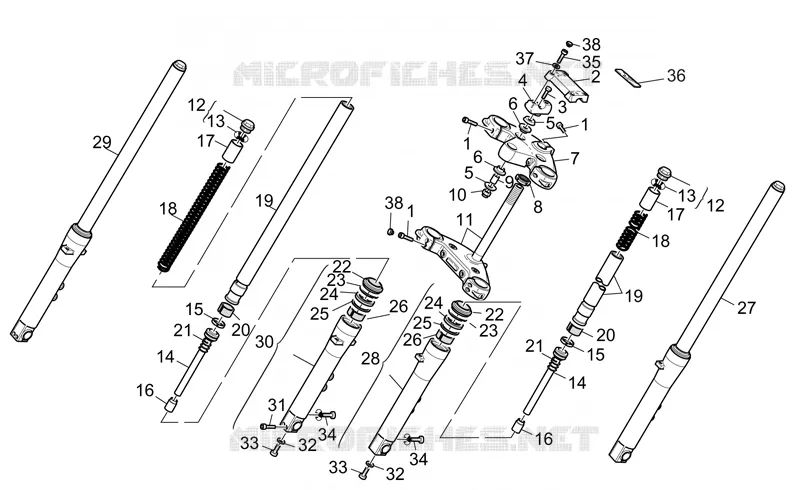

Find the detailed Front fork MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
