1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2002
4
Trim
California Stone/Metal PI
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Lateral stand
by
Fuel vapour recover system
Fuel tank
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Réservoir carburant gris por.
GU89000456
£1 211,40 Unit Price incl. VAT
1
Fuel tank chrome
GU89000490
Not Available
1
Reservoir carburant noir ard.
GU89000455
£1 211,40 Unit Price incl. VAT
1
Fuel tank, black
GU89000485
Not Available
1
Fuel tank porphiry grey
GU89000452
£4 006,91 Unit Price incl. VAT
1
Reservoir carburant gris por.
GU89000478
£1 211,40 Unit Price incl. VAT
1
Reservoir carburant blanc
GU89000454
£1 211,40 Unit Price incl. VAT
1
Réservoir noir
GU89000491
£1 211,40 Unit Price incl. VAT
1
Fuel tank chrome
GU89000486
£1 039,82 Unit Price incl. VAT
1
Fuel tank blank
GU03100200
Not Available
1
Reservoir carburant blanc
GU89000477
£1 211,40 Unit Price incl. VAT
1
Réservoir carburant blanc
GU89000481
£1 211,40 Unit Price incl. VAT
1
Fuel tank chrome
GU89000492
£3 230,56 Unit Price incl. VAT
1
Reservoir carburant noir ard.
GU89000480
£1 211,40 Unit Price incl. VAT
1
Reservoir noir
GU89000489
£1 211,40 Unit Price incl. VAT
1
Réservoir carburant noir ard.
GU89000484
£1 211,40 Unit Price incl. VAT
1
Réservoir carburant orange
GU89000483
£1 222,93 Unit Price incl. VAT
1
Réservoir carburant gris por.
GU89000482
£1 211,40 Unit Price incl. VAT
1
Reservoir carburant noir ard.
GU89000459
£1 222,93 Unit Price incl. VAT
1
Fuel tank chrome
GU89000488
Not Available
1
Reservoir carburant orange
GU89000479
£1 211,40 Unit Price incl. VAT
1
Fuel tank orange
GU89000457
Not Available
1
Fuel tank, black
GU89000487
Not Available
1
Fuel tank white
GU89000458
Not Available
1
Réservoir brut
GU03100220
£386,50 Unit Price incl. VAT
1
Reservoir carburant orange
GU89000453
£1 222,93 Unit Price incl. VAT
2
RH stic."Moto Guzzi" grey/red
GU03917843
£36,50 Unit Price incl. VAT
2
"Déc.droite ""Moto Guzzi"" ro/chr"
GU03917844
£26,82 Unit Price incl. VAT
2
"Déc.droite ""Moto Guzzi"" no/rou"
GU03917842
£26,05 Unit Price incl. VAT
2
RH stic."Moto Guzzi" red/black
GU03917841
£22,32 Unit Price incl. VAT
3
"Déc.""Moto Guzzi"" rouge/rouge"
GU03917941
£26,05 Unit Price incl. VAT
3
"Déc.""Moto Guzzi"" gris/rouge"
GU03917943
£28,99 Unit Price incl. VAT
3
"Déc.""Moto Guzzi"" noir/rouge"
GU03917942
£26,05 Unit Price incl. VAT
3
"Déc.""Moto Guzzi"" rouge/chrome"
GU03917944
£27,07 Unit Price incl. VAT
4
Gasket
GU03106400
Not Available
5
Tank cap
GU03103950
Not Available
5
Tank cap
GU03103920
£86,88 Unit Price incl. VAT
6
Bride
GU03101900
£57,32 Unit Price incl. VAT
7
Joint
GU03102400
£11,75 Unit Price incl. VAT
8
Embout pour bouchon
GU03102200
£22,43 Unit Price incl. VAT
9
Joint
GU03101600
£38,39 Unit Price incl. VAT
10
Reduction 38 mm
GU03101720
£7,43 Unit Price incl. VAT
11
Vis
GU03103200
£7,98 Unit Price incl. VAT
12
Vis M8x30
GU98350430
£2,35 Unit Price incl. VAT
13
Rondelle
GU95100239
£2,04 Unit Price incl. VAT
14
Spacer
GU31103565
£7,36 Unit Price incl. VAT
15
Caoutchouc
GU91551131
£2,16 Unit Price incl. VAT
16
Ecrou en cage
GU92660801
£2,04 Unit Price incl. VAT
17
Fuel cock
GU01105460
Not Available
18
Fuel level sensor
GU03103000
£161,45 Unit Price incl. VAT
19
Lock kit
GU03736850
£132,11 Unit Price incl. VAT
19
Lock kit
GU03736820
£103,84 Unit Price incl. VAT
20
Clé pas cantée brut
GU30735500
£10,22 Unit Price incl. VAT
21
Sticker
GU29995735
£15,02 Unit Price incl. VAT
22
Bague
GU03103500
£13,40 Unit Price incl. VAT
23
Cloison avant d.noir
GU30472460
£20,77 Unit Price incl. VAT
24
Cloison avant g.noir
GU30472960
£20,77 Unit Price incl. VAT
25
Rondelle 6,4x12x1,2
GU95008306
£0,58 Unit Price incl. VAT
26
Vis M6x12
GU98350312
£2,36 Unit Price incl. VAT
27
"Decalco ""Unleaded Fuelonly"""
GU03995730
£8,08 Unit Price incl. VAT
28
"Décalco ""Attention"""
GU30944300
£13,50 Unit Price incl. VAT
29
Décalco soupape hidraulique
GU03917543
£26,84 Unit Price incl. VAT

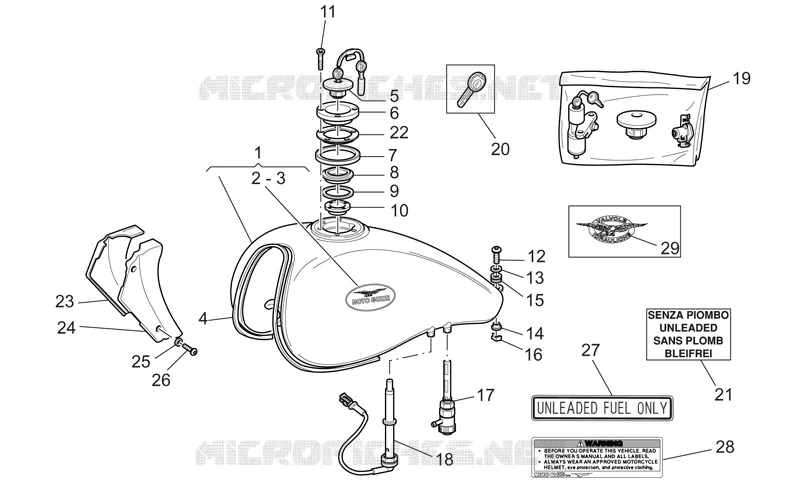

Find the detailed Fuel tank MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
