1
Engine displacement
1000
2
Model
CALIFORNIA
3
Year
1983
4
Trim
California II
5
Parts Catalog
Footrests-Stands
6
Parts Diagram
Parts Catalog
Mudguards
by
Wheels
Footrests-Stands
1
2
2
3
4
5
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
30
30
31
32
33
34
35
36
36
36
36
37
38
39
39
40
41
42
43
44
45
47
48
49
50
51
52
53
54
55
1
Washer
GU95004208
£0,70 Unit Price incl. VAT
2
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
3
Nut
GU92602208
Not Available
4
Lateral stand
GU29432020
Not Available
4
Lateral stand
GU29432000
Not Available
5
Rubber pedal
GU13432640
£9,67 Unit Price incl. VAT
6
Pad
GU12433000
Not Available
7
plate
GU29432800
Not Available
8
Nut
GU92781100
Not Available
9
Spring
GU14434000
£8,26 Unit Price incl. VAT
10
Block
GU13433440
Not Available
11
Plate
GU14418200
Not Available
12
Hex screw
GU98054416
£1,02 Unit Price incl. VAT
13
Central stand
GU30430360
Not Available
14
LH plate
GU14433200
Not Available
15
RH plate
GU14432900
Not Available
16
Spring
GU18434060
Not Available
17
LH bush
GU14433500
£13,44 Unit Price incl. VAT
18
screw
GU98052545
£2,47 Unit Price incl. VAT
19
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
20
Spring washer 19x34x1,5
GU14433400
£1,02 Unit Price incl. VAT
21
Nut M10X1,5
GU92630110
£4,01 Unit Price incl. VAT
22
RH craddle arm
GU29420320
Not Available
22
RH craddle arm
GU184203501
Not Available
23
LH craddle arm
GU184221501
Not Available
23
LH craddle arm
GU29422120
Not Available
24
Front footrest assy
GU29443450
Not Available
25
Footrest rubber
GU18447050
Not Available
26
screw
GU98107035
£10,70 Unit Price incl. VAT
27
Nut
GU92700073
Not Available
28
Hex socket screw M12X30
GU98623630
£9,01 Unit Price incl. VAT
29
Notched washer
GU95021112
£0,65 Unit Price incl. VAT
30
Nut
GU92602312
£1,58 Unit Price incl. VAT
31
Low nut M12x1,25
GU92602512
£1,57 Unit Price incl. VAT
32
Pin
GU14429500
Not Available
33
screw
GU14429600
Not Available
34
LH outer spacer
GU14429900
£19,45 Unit Price incl. VAT
35
Spacer
GU14429800
Not Available
36
Washer
GU95000213
£0,96 Unit Price incl. VAT
37
Nut
GU92602206
£1,68 Unit Price incl. VAT
38
screw
GU98052325
£0,56 Unit Price incl. VAT
39
plate
GU18423950
Not Available
40
screw
GU98052440
£1,76 Unit Price incl. VAT
41
Footrest support
GU18445450
Not Available
42
Footrest
GU144413501
Not Available
43
Footrest rubber
GU14443200
£45,48 Unit Price incl. VAT
44
screw
GU98064345
Not Available
45
Nut
GU92603206
Not Available
47
plate
GU18432760
£14,10 Unit Price incl. VAT
48
Coil connector
GU29755400
Not Available
49
Cap
GU18759650
Not Available
50
Bracket
GU18759351
Not Available
51
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
52
Washer 6,5X17X1.5
GU95100139
£1,20 Unit Price incl. VAT
53
Spacer
GU91180607
Not Available
54
Rubber spacer
GU91551085
Not Available
55
U-bolt
GU93301313
£74,62 Unit Price incl. VAT

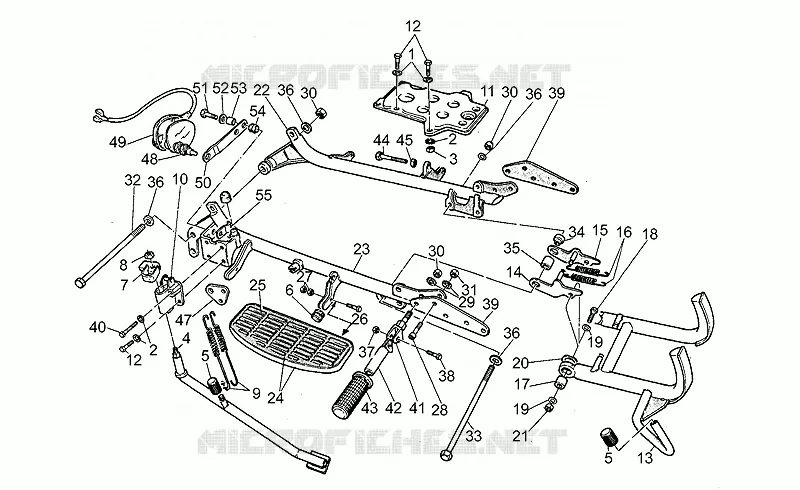

Find the detailed Footrests-Stands MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
