1
Engine displacement
750
2
Model
BREVA
3
Year
2007
4
Trim
Breva IE
5
Parts Catalog
Clutch I
6
Parts Diagram
Parts Catalog
Fuel supply
by
Rear lights
Clutch I
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
1
Embrayage
GU32080310
£205,55 Unit Price incl. VAT
2
Cuvette
GU19083462
£116,89 Unit Price incl. VAT
3
Anneau élastique
GU90272075
£7,98 Unit Price incl. VAT
4
Disque embrayage mené
GU32084410
£181,08 Unit Price incl. VAT
5
Couronne
GU32067910
£387,66 Unit Price incl. VAT
6
Washer 6,4x10x0,7
GU14217901
Not Available
7
Vis M6X16
GU98084316
£1,20 Unit Price incl. VAT
8
Clutch drum
GU32200410
Not Available
9
Bouchon
GU93180220
£3,68 Unit Price incl. VAT
10
Roulement 25x52x15
GU92201225
£52,09 Unit Price incl. VAT
11
Plaque fixation palier
GU19203460
£17,52 Unit Price incl. VAT
12
Vis
884037
£3,66 Unit Price incl. VAT
13
Rondelle 10,2X18X2
GU95008210
£0,85 Unit Price incl. VAT
14
Vis M6X30
GU98682330
£1,26 Unit Price incl. VAT
15
Vis TCEI M8x35
GU98680435
£4,98 Unit Price incl. VAT
16
Vis M8x50
GU98680450
£1,54 Unit Price incl. VAT
17
Rondelle élastique
GU61270300
£1,70 Unit Price incl. VAT
18
Ecrou M8x1,25
GU92606208
£0,94 Unit Price incl. VAT
19
Bouchon vid.huile M10X1
GU31003766
£15,77 Unit Price incl. VAT
20
Gasket ring 32x45x7
GU90403246
Not Available

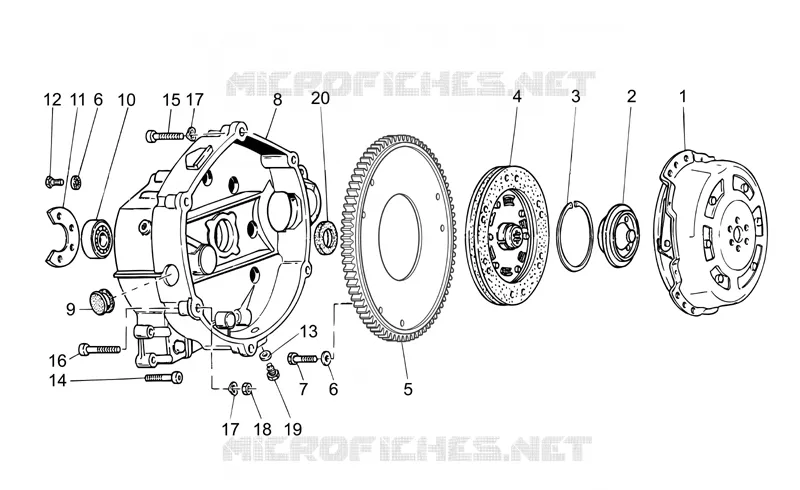

Find the detailed Clutch I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
