Transmission cage for MOTO GUZZI LAVERDA SCARABEO Bellagio from 2008

Free shipping for all orders to United Kingdom over £150! See conditions.

Transmission cage

1

Clutch drum nero

976453

Not Available

2

Vis bride M8x20

GU97202355

£2,47 Unit Price incl. VAT

3

Bouchon

GU93180220

£3,68 Unit Price incl. VAT

4

Vis M6X16

GU98370616

£2,48 Unit Price incl. VAT

5

Gearbox black

976452

Not Available

6

Bouchon huile M18x1,5

GU95980319

£13,40 Unit Price incl. VAT

7

Rondelle 18,25x24x1

GU18144350

£6,66 Unit Price incl. VAT

8

Bouchon purge

GU05204930

£20,78 Unit Price incl. VAT

9

Joint

GU01528930

£4,21 Unit Price incl. VAT

10

Capteur POINT MORT

GU19207220

£88,42 Unit Price incl. VAT

11

Joint

B063025

£4,70 Unit Price incl. VAT

12

Bague d'étanchéité 14x24x7

GU90401424

£34,70 Unit Price incl. VAT

13

Bouchon vid.huile M10X1

GU31003766

£15,77 Unit Price incl. VAT

14

Bague 6,6x9x13

GU19002020

£8,24 Unit Price incl. VAT

15

Collier

AP8101595

£3,97 Unit Price incl. VAT

16

Fuel pipe 5,5x10

AP8120952

Not Available

17

Gear box assy

976926

£2 903,50 Unit Price incl. VAT

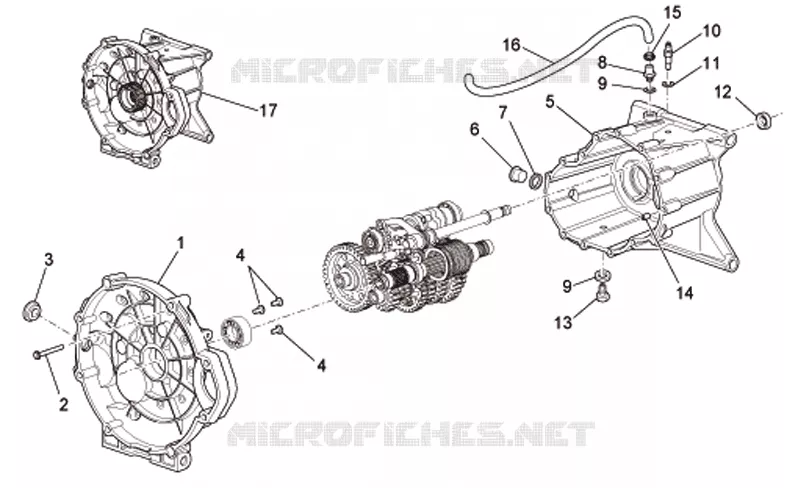

Find the detailed Transmission cage MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
