1
Engine displacement
850
2
Model
V9
3
Year
2020
4
Trim
V9 Bobber 850 Euro 4 ABS
5
Parts Catalog
REAR WHEEL
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
FRONT BRAKE MASTER CYLINDER

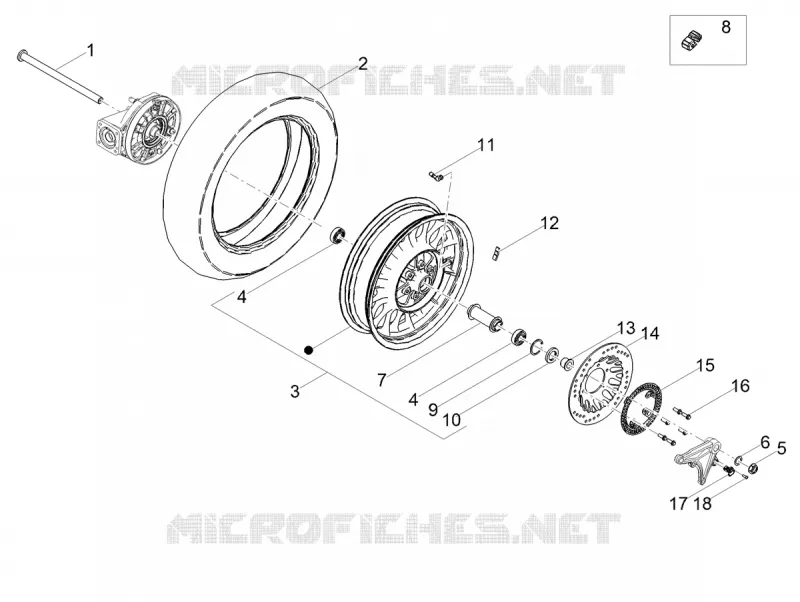

REAR WHEEL
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Axe de roue AR
2B001310
£81,16 Unit Price incl. VAT
2
Rear tyre 150/80 16"
2B002900
£241,36 Unit Price incl. VAT
3
Jante arrière
2B001114
£509,56 Unit Price incl. VAT
4
Roulement à billes 20X47X14
GU92204220
£10,28 Unit Price incl. VAT
5
Rear wheel spindle nut
648708
Not Available
6
Rondelle axe roue AR;
AP8125687
£1,27 Unit Price incl. VAT
7
Entretoise roue
2B001279
£38,99 Unit Price incl. VAT
8
Joint en caoutchouc
GU32632510
£15,29 Unit Price incl. VAT
9
Bague seeger 47X50,5
GU90272047
£7,98 Unit Price incl. VAT
10
Bague d'étanchéité
AP8110109
£6,54 Unit Price incl. VAT
11
Soupape tubeless
GU03617710
£27,68 Unit Price incl. VAT
12
Contrepoids
GU14616150
£18,94 Unit Price incl. VAT
13
Entretoise
2B001956
£23,00 Unit Price incl. VAT
14
Disque frein
887448
£65,28 Unit Price incl. VAT
15
Roue phonique
2B004396R
£27,48 Unit Price incl. VAT
16
Flanged TE screw M8x22
887762
Not Available
17
Sensor ABS
859792
Not Available
18
Vis
1C001499
£3,38 Unit Price incl. VAT

Find the detailed REAR WHEEL MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
