1
Engine displacement
850
2
Model
V9
3
Year
2020
4
Trim
V9 Bobber 850 Euro 4 ABS
5
Parts Catalog
FOOTRESTS
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
FUEL EVAP SYSTEM
FOOTRESTS
1
2
3
4
5
5
5
5
6
7
8
9
10
10
10
10
11
11
11
11
12
12
13
13
13
13
14
14
15
15
16
16
17
17
17
17
18
18
19
19
20
20
21
1
RH front footrest bracket
2B002218
£75,06 Unit Price incl. VAT
2
Sup.pl.pilote gche
2B002219
£115,75 Unit Price incl. VAT
3
Sup.pl.pilote dte
2B003077
£142,22 Unit Price incl. VAT
4
Sup.pl.pilote gche
2B003076
£142,22 Unit Price incl. VAT
5
CAOUTCHOUC PLATE-FORME
2B002225
£8,00 Unit Price incl. VAT
6
RH Foot rests
AP81450345
Not Available
7
LH Foot rests
AP81450355
Not Available
8
Rear footrest, RH
GU32442310
Not Available
9
Rear footrest, LH
GU32442710
Not Available
10
Plaquette
GU32441210
£10,54 Unit Price incl. VAT
11
Vis bride
2B005143
£0,42 Unit Price incl. VAT
12
Footrest pin
2B004077
£7,67 Unit Price incl. VAT
13
Vis
2B004172
£1,14 Unit Price incl. VAT
14
Pivot repose-pieds
CM228401
£3,17 Unit Price incl. VAT
15
Pivot repose-pieds
AP8121567
£19,96 Unit Price incl. VAT
16
Res.rap. plan. pil.;
AP8221277
£10,54 Unit Price incl. VAT
17
Anneau d'arrêt rad.
AP8120573
£0,73 Unit Price incl. VAT
18
Plaque fdc r-pied;
AP8134451
£5,77 Unit Price incl. VAT
19
Res. hélic. compr
AP8121133
£3,22 Unit Price incl. VAT
20
Bille
AP8101861
£0,36 Unit Price incl. VAT
21
VIS
2B002171
£0,86 Unit Price incl. VAT

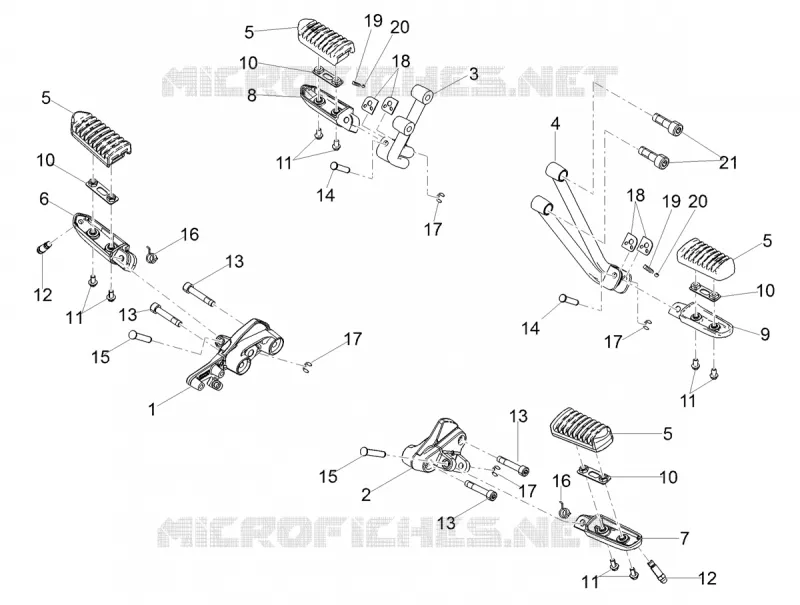

Find the detailed FOOTRESTS MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
