Engine displacement
850
2
Model
V9
3
Year
2020
4
Trim
V9 Bobber 850 Euro 4 ABS
5
Parts Catalog
Rear transmission / Components
6
Parts Diagram
Parts Catalog
REAR MUDGUARD
by
REAR ELECTRICAL SYSTEM
Rear transmission / Components
1
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
20
20
20
20
21
22
23
24
25
25
26
27
28
1
Ecrou
976649
£21,32 Unit Price incl. VAT
1
Ecrou
2B005012
£12,68 Unit Price incl. VAT
2
Bague d'étanchéité
2B000404
£27,80 Unit Price incl. VAT
3
ENTRETOISE
2B001311
£25,54 Unit Price incl. VAT
4
Bague d'étanchéité 18,77X1,78
GU90706188
£1,39 Unit Price incl. VAT
5
Joint 58,42x2,62
GU90706584
£1,60 Unit Price incl. VAT
6
Joint
GU01528930
£4,21 Unit Price incl. VAT
7
Bouchon vid.huile M10X1
GU31003766
£15,77 Unit Price incl. VAT
8
JOINT
224566
£0,83 Unit Price incl. VAT
9
Bouchon huile M12x1,5
GU05351230
£13,44 Unit Price incl. VAT
10
Rondelle
GU37359005
£13,40 Unit Price incl. VAT
11
Spacer
2B001307
£21,20 Unit Price incl. VAT
12
Bague d'étanchéité 38X50X7
GU90413850
£38,47 Unit Price incl. VAT
13
Bague d'étanchéité
GU12351100
£70,49 Unit Price incl. VAT
14
Roller bearing 40x55x17
GU92254340
Not Available
15
Bague seeger
2B002200
£1,13 Unit Price incl. VAT
16
Bague seeger
B064304
£2,72 Unit Price incl. VAT
17
Rondelle d'appui
GU19351100
£2,22 Unit Price incl. VAT
18
Douille
2B002536
£25,44 Unit Price incl. VAT
19
Joint torique 158,42X2,62
GU90706958
£3,44 Unit Price incl. VAT
20
Cale 0,7 mm
GU04355101
£21,19 Unit Price incl. VAT
20
Cale 1,2 mm
GU04355106
£16,84 Unit Price incl. VAT
20
Cale 0,6 mm
GU04355100
£19,32 Unit Price incl. VAT
20
Cale 1,1 mm
GU04355105
£17,92 Unit Price incl. VAT
20
Cale 0,8 mm
GU04355102
£20,34 Unit Price incl. VAT
20
Cale 0,9 mm
GU04355103
£17,09 Unit Price incl. VAT
20
Cale 1 mm
GU04355104
£18,61 Unit Price incl. VAT
21
Cache
2B002807
£4,22 Unit Price incl. VAT
22
Bouchon purge
2A000823
£11,11 Unit Price incl. VAT
23
Complete flange
2B0033875
£96,97 Unit Price incl. VAT
24
Bague d'étanchéité
2B002535
£28,87 Unit Price incl. VAT
25
Flexible couplings hub
2B001303
Not Available
25
Tampons caoutchouc pour moyeu
2B007759
£309,12 Unit Price incl. VAT
26
Rondelle 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
27
VIS
2B002171
£0,86 Unit Price incl. VAT
28
Bague d'étanchéité
2B007243
£4,45 Unit Price incl. VAT

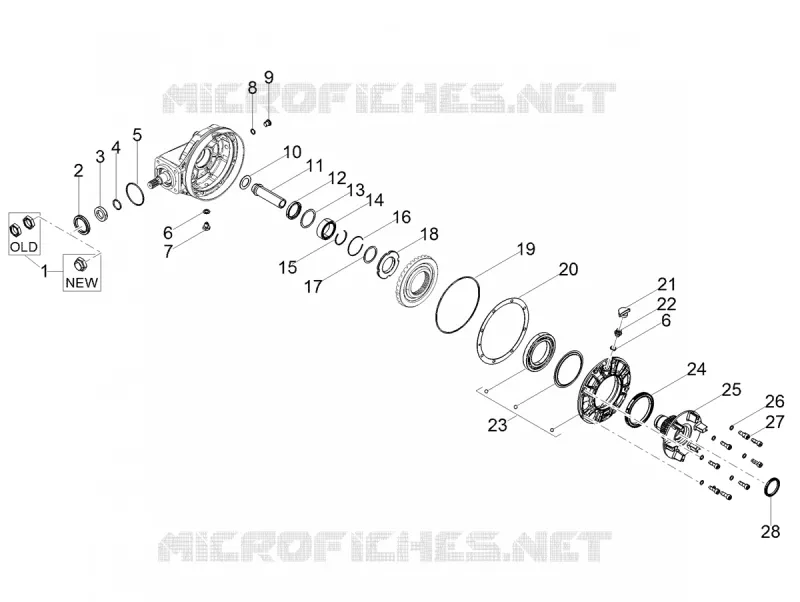

Find the detailed Rear transmission / Components MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
