1
Engine displacement
850
2
Model
V9
3
Year
2020
4
Trim
V9 Bobber 850 Euro 4 ABS
5
Parts Catalog
CLUTCH
6
Parts Diagram
Parts Catalog
CRANKSHAFT
by
SEAT
CLUTCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Complete single plate clutch assembly
2A000419
£259,86 Unit Price incl. VAT
2
Vis
GU19067700
£2,51 Unit Price incl. VAT
3
Rondelle 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
4
Couronne dentée
2A000724
£512,88 Unit Price incl. VAT
5
Washer 6,4x10x0,7
GU14217901
Not Available
6
Vis
2A000774
£2,64 Unit Price incl. VAT
7
Arbre embrayage
2A000792
£144,24 Unit Price incl. VAT
8
Commande embrayage
2A000216
£23,76 Unit Price incl. VAT
9
Roulement à billes 25x52x15
GU92201226
£50,18 Unit Price incl. VAT
10
Joint torique 23,52x1,78
GU90706235
£1,60 Unit Price incl. VAT
11
Bague d'étanchéité
886629
£28,92 Unit Price incl. VAT
12
Entretoise
1A008627
Not Available
13
Bague
1A014685
Not Available
14
Ball bearing
2A000375
£19,43 Unit Price incl. VAT
15
Pignon embrayage
B013037
£24,71 Unit Price incl. VAT
16
Roulement
2A000376
£23,40 Unit Price incl. VAT
17
Corps extérieur
GU14086100
£71,74 Unit Price incl. VAT
18
Pivot
2A000384
£21,78 Unit Price incl. VAT
19
Bague d'étanchéité
2A000385
£0,61 Unit Price incl. VAT
20
Goupille
GU95500222
£1,26 Unit Price incl. VAT
21
Levier boîte de vitesses
2A000631
£34,31 Unit Price incl. VAT
22
Retour levier démarrage
GU94321105
£1,94 Unit Price incl. VAT
23
Vis
2A000838
£6,77 Unit Price incl. VAT
24
Ecrou m8x1
GU92606508
£1,26 Unit Price incl. VAT
25
Douille
GU14085900
£2,48 Unit Price incl. VAT
26
Bague
GU05217630
£10,75 Unit Price incl. VAT
27
Joint torique 17,13x2,62
GU90706170
£2,00 Unit Price incl. VAT
28
Disque embrayage
2A000770
£153,52 Unit Price incl. VAT
29
Bague
2A000418
£5,36 Unit Price incl. VAT
30
Plateau
2A000638
£18,77 Unit Price incl. VAT
31
Renforcement
2A000741
£7,49 Unit Price incl. VAT
32
Bague d'étanchéité
2A000378
£2,20 Unit Price incl. VAT

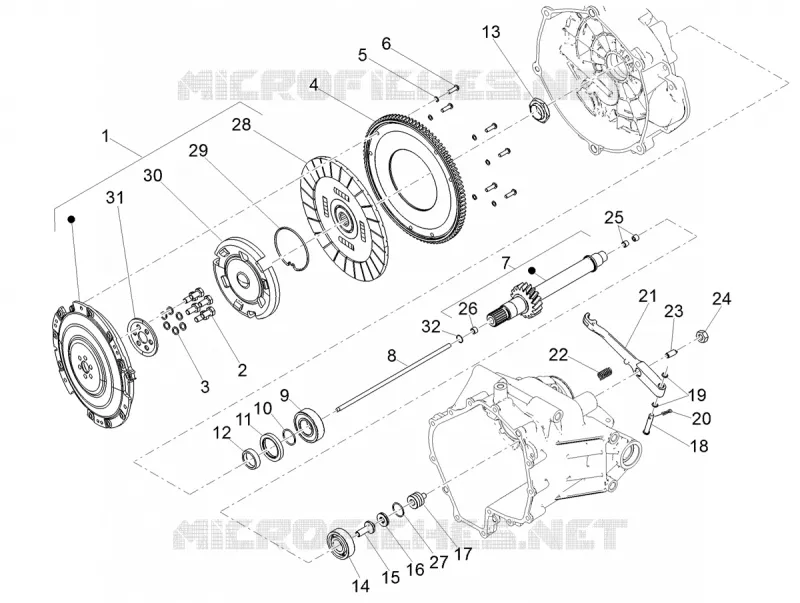

Find the detailed CLUTCH MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
