Parts Catalog
Front headlamps
6
Parts Diagram
Parts Catalog
REAR ELECTRICAL SYSTEM
by
Front fork Kaifa
Front headlamps
1
1
2
2
3
3
4
4
5
5
6
6
6
6
7
7
7
7
8
8
8
8
9
9
9
9
10
10
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
1
Projecteur
2D000434
£265,55 Unit Price incl. VAT
2
AMPOULE 12V-60/55W H4 -> 437327
292723
£18,91 Unit Price incl. VAT
3
Lamp 12V-5W
292022
Not Available
4
Clignotant AV droite
2D000261
£47,48 Unit Price incl. VAT
5
Clignotant avant gauche
2D000262
£47,48 Unit Price incl. VAT
6
AMPOULE 12V-10W
584332
£3,77 Unit Price incl. VAT
7
TRANSPARENT INDICATEUR
639338
£11,98 Unit Price incl. VAT
8
Vis
GU98612320
£1,06 Unit Price incl. VAT
9
Vis M8X45
GU98690445
£3,11 Unit Price incl. VAT
10
Douille
AP8121199
£10,54 Unit Price incl. VAT
11
Entretoise
2B002011
£8,84 Unit Price incl. VAT
12
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
13
Passe-câble
2B003164
£8,02 Unit Price incl. VAT
14
Passe-câble
2B003165
£8,41 Unit Price incl. VAT
15
Vis
AP8150053
£2,48 Unit Price incl. VAT
16
Support gauche
2B001231
£58,55 Unit Price incl. VAT
17
Support droite
2B001182
£57,67 Unit Price incl. VAT

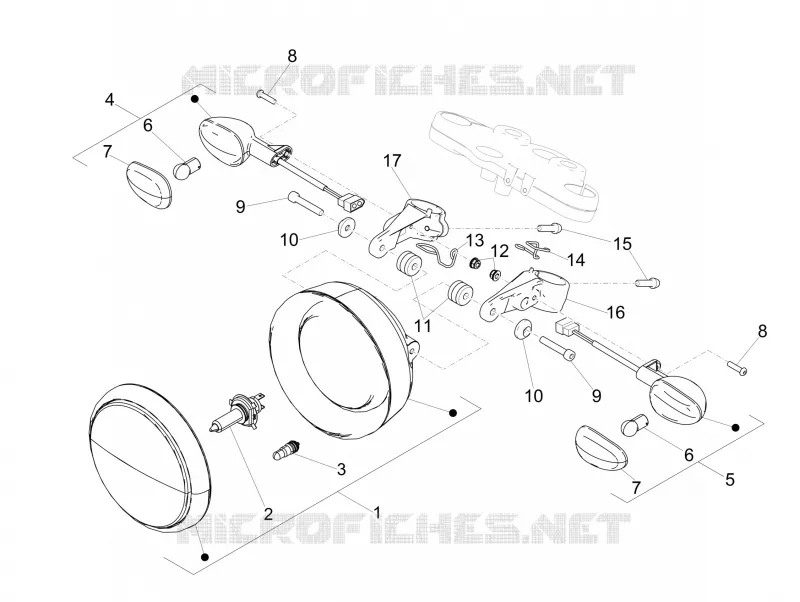

Find the detailed Front headlamps MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
