Engine displacement
850
2
Model
V9
3
Year
2020
4
Trim
V9 Bobber 850 Euro 4 ABS
5
Parts Catalog
Timing system
6
Parts Diagram
Parts Catalog
FRONT BRAKE CALIPER
by
CYLINDER HEAD - VALVES
Timing system
1
2
3
3
3
4
4
4
4
5
5
5
6
6
7
7
7
8
8
8
8
9
9
9
10
10
10
10
11
12
12
13
13
14
14
14
14
15
15
15
15
16
16
17
18
19
20
21
22
23
24
25
26
27
27
1
Arbre à cames
1A010701
Not Available
2
Tôle
1A009346
Not Available
3
Poussoir
GU19045861
£276,40 Unit Price incl. VAT
4
Tirant pour boite vitesse cpl.
2A000496
£11,69 Unit Price incl. VAT
5
Joint spie
2A000579
£1,87 Unit Price incl. VAT
6
Rocker arm support
1A010730
Not Available
7
RONDELLE
1A005951
Not Available
8
Axe culbuteur
2A000528
£61,15 Unit Price incl. VAT
9
Fourchette
2A000521
£33,46 Unit Price incl. VAT
10
Vis bride
AP8152272
£1,88 Unit Price incl. VAT
11
Chain stretching drive
GU19058220
Not Available
12
Left exhaust right intake rocker
1A004905
Not Available
13
Right exhaust left intake rocker
1A004903
Not Available
14
VIS
1A004907
Not Available
15
Ecrou
GU10034100
£13,40 Unit Price incl. VAT
16
Bague d'étanchéité
1A006861
Not Available
17
VIS
B014598
£1,27 Unit Price incl. VAT
18
Rondelle
GU95129115
£0,86 Unit Price incl. VAT
19
Tôle
1A005955
Not Available
20
Chaîne de distribution
GU19058021
£205,50 Unit Price incl. VAT
21
Timing system gear
1A006243
Not Available
22
Entretoise
1A006119
Not Available
23
Joint
1A006127
Not Available
24
Codeur compteur Km
1A0057145
Not Available
25
Vis bride
1A008576
Not Available
26
Vis
GU98882316
£0,89 Unit Price incl. VAT
27
Plaque
2A000527
£11,90 Unit Price incl. VAT

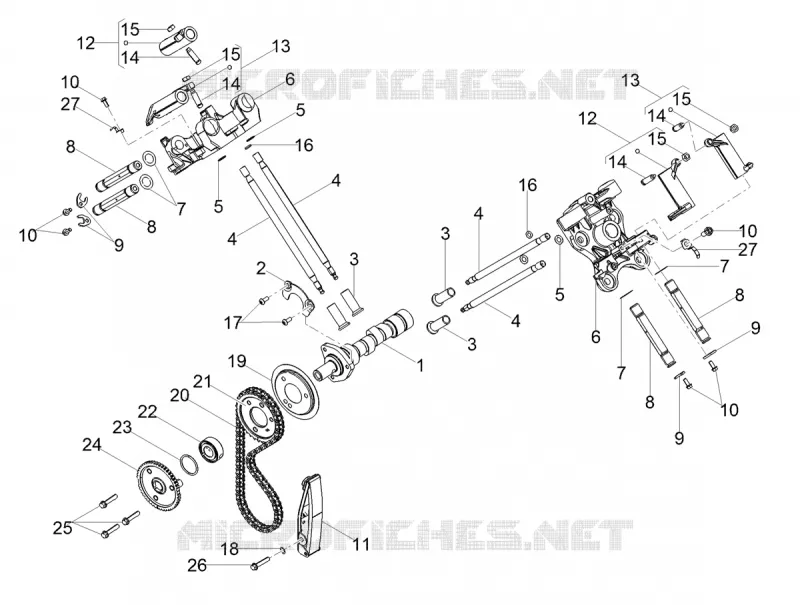

Find the detailed Timing system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
