Engine displacement
850
2
Model
V9
3
Year
2020
4
Trim
V9 Bobber 850 Euro 4 ABS
5
Parts Catalog
STEERING
6
Parts Diagram
Parts Catalog
Front fork Kaifa
by
SWINGARM
STEERING
1
1
2
2
2
2
3
3
4
4
5
5
6
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
13
13
14
14
15
15
16
16
1
Plaque inf.
2B003743
£268,01 Unit Price incl. VAT
2
Vis tcc
AP8150543
£13,28 Unit Price incl. VAT
3
Plaque sup. fourche
2B001052
£510,95 Unit Price incl. VAT
4
Douille fx. pl. sup.
AP8121205
£38,83 Unit Price incl. VAT
5
Rondelle bouchon fourreau
AP8152384
£2,20 Unit Price incl. VAT
6
Anneau pare-pouss.
AP8123641
£13,74 Unit Price incl. VAT
7
Axial ball bearing
AP8110077
Not Available
8
Anneau pare-pouss.
AP8123644
£6,36 Unit Price incl. VAT
9
Entretoise
887831
£7,85 Unit Price incl. VAT
10
Bague
AP8123642
£25,34 Unit Price incl. VAT
11
Contre-bague
AP8123643
£27,53 Unit Price incl. VAT
12
Plaquette
887832
£16,00 Unit Price incl. VAT
13
Vis
2B002313
£4,08 Unit Price incl. VAT
14
Support
890760
£16,21 Unit Price incl. VAT
15
Plaquette
2B003292
£5,02 Unit Price incl. VAT
16
Vis bride M6X16
GU98210616
£3,95 Unit Price incl. VAT

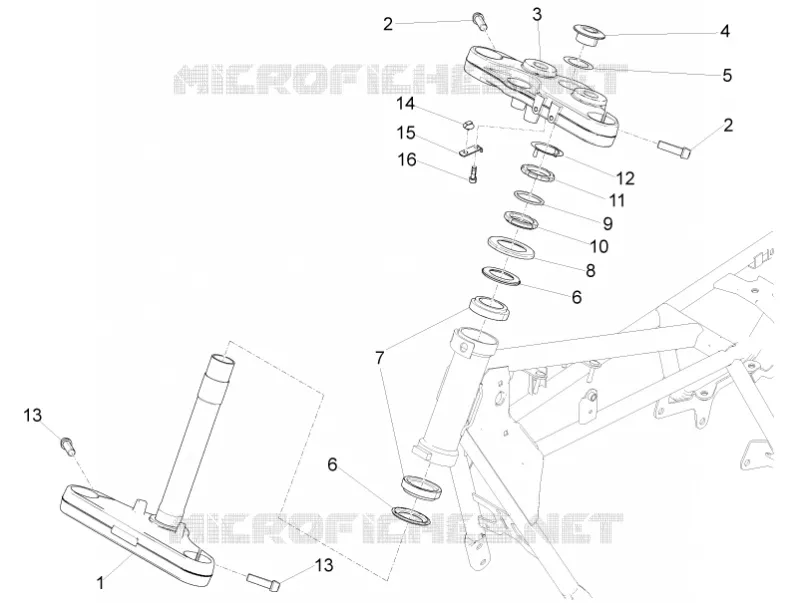

Find the detailed STEERING MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
