Parts Catalog
AIR BOX
6
Parts Diagram
Parts Catalog
Blow-by system
by
TAIL LIGHTS
AIR BOX
1
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
1
Vis SWP crois. brid.
AP8152329
£1,80 Unit Price incl. VAT
2
Corps filtre
2B002832
£25,66 Unit Price incl. VAT
3
SILENT BLOCK BEQUILLE
AP8120455
£10,54 Unit Price incl. VAT
4
Filtre blow-by
AP8104525
£3,28 Unit Price incl. VAT
5
Diaphragme
2B002851
£6,29 Unit Price incl. VAT
6
Joint
AP8120615
£2,59 Unit Price incl. VAT
7
Filtre air
AP8104924
£25,15 Unit Price incl. VAT
8
Durite d'admission
887815
£14,70 Unit Price incl. VAT
9
Couvercle de filtre
887843
£17,54 Unit Price incl. VAT
10
Vis taraud 5x14
AP8150509
£1,94 Unit Price incl. VAT
11
Bouchon de fermeture
AP8120876
£8,23 Unit Price incl. VAT
12
Coquille D de boîtier de filtre
887844
£20,27 Unit Price incl. VAT
13
Support
890760
£16,21 Unit Price incl. VAT
14
Corps filtre
2B002959
£229,66 Unit Price incl. VAT
15
Collier serr. Tube
AP8102520
£2,08 Unit Price incl. VAT
16
Capuchon
AP8161054
£3,42 Unit Price incl. VAT
17
Collier
CM258303
£2,22 Unit Price incl. VAT
18
"Douille en ""T"" *"
AP8221023
£1,64 Unit Price incl. VAT
19
Caoutchouc
GU91551010
£8,06 Unit Price incl. VAT

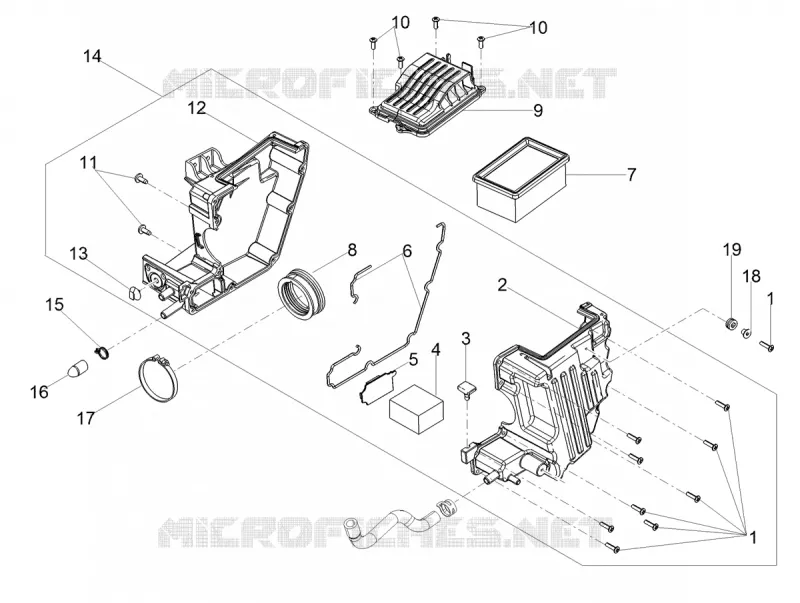

Find the detailed AIR BOX MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
