Parts Catalog
CENTRAL ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
ENGINE - GEAR LEVER - SPROCKET
by
HANDLEBAR - CONTROLS
CENTRAL ELECTRICAL SYSTEM
1
1
2
2
3
3
4
4
5
5
5
5
6
6
6
6
7
7
7
7
8
8
8
8
9
9
10
10
11
11
12
12
13
13
13
13
14
14
14
14
15
15
16
16
17
17
18
18
19
19
19
19
20
20
21
21
21
21
1
Faisceau de câbles
2D000209
£740,52 Unit Price incl. VAT
2
Collier 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
3
Collier 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
4
Relais 12V/30A
AP8224462
£24,32 Unit Price incl. VAT
5
Capuchon bougie
1A010839
Not Available
6
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
7
Bougie
887481
£18,19 Unit Price incl. VAT
8
CAPUCHON
641040
£7,73 Unit Price incl. VAT
9
SENSOR DE CHUTE
680212
£94,66 Unit Price incl. VAT
10
Rondelle 6,4X13X1,5
GU95005304
£2,48 Unit Price incl. VAT
11
VIS
478533
£0,98 Unit Price incl. VAT
12
SUPPORTO
2B004174
£2,16 Unit Price incl. VAT
13
Douille en T
2B003052
£3,49 Unit Price incl. VAT
14
VIS
1A003444
£1,20 Unit Price incl. VAT
15
Bobine H.T.
641901
£118,08 Unit Price incl. VAT
16
Bobine H.T.
642034
£57,73 Unit Price incl. VAT
17
Câble H.T.
CM277101
£23,08 Unit Price incl. VAT
18
Câble H.T.
CM277102
£23,08 Unit Price incl. VAT
19
CABLE H.T.
080341
Not Available
20
Détect. température
887421
£147,26 Unit Price incl. VAT
21
Cache
2D000355
£31,12 Unit Price incl. VAT

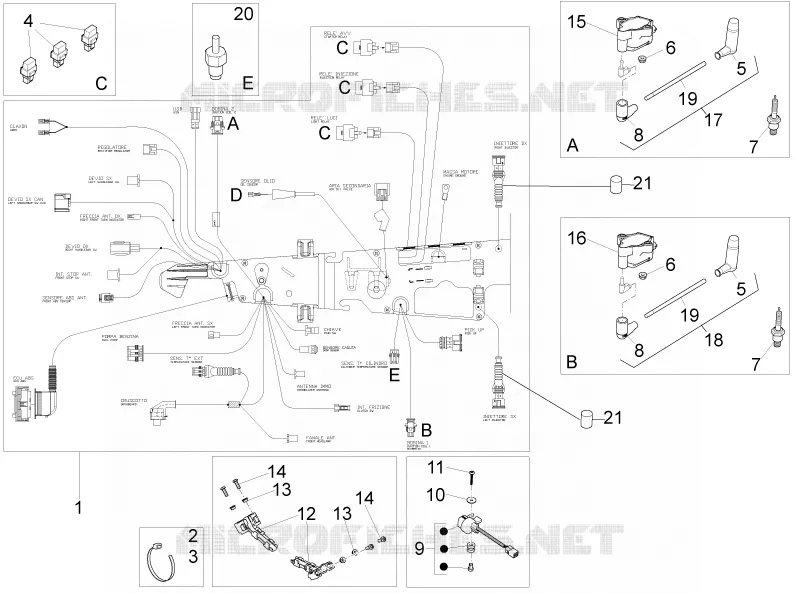

Find the detailed CENTRAL ELECTRICAL SYSTEM MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
