Parts Catalog
FRONT ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
CRANKCASES I
by
Front wheel
FRONT ELECTRICAL SYSTEM
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
1
Faisceau de câbles
2D000209
£740,52 Unit Price incl. VAT
2
USB port
1D002259R
Not Available
3
Klaxon
2B000221
£46,57 Unit Price incl. VAT
4
VIS TCB M 6 X 16 INOX
AP8150377
£2,47 Unit Price incl. VAT
5
PLAQUETTE
254485
£1,64 Unit Price incl. VAT
6
Détec. temper. air
AP8124936
£82,98 Unit Price incl. VAT
7
Régulateur de tension
1D001549
£120,54 Unit Price incl. VAT
8
Collier 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
9
Collier 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
10
Encoder sensor
832029
Not Available
11
O-ring
GU90706141
Not Available
12
Vis TCEI M6x14
GU98682314
£1,26 Unit Price incl. VAT

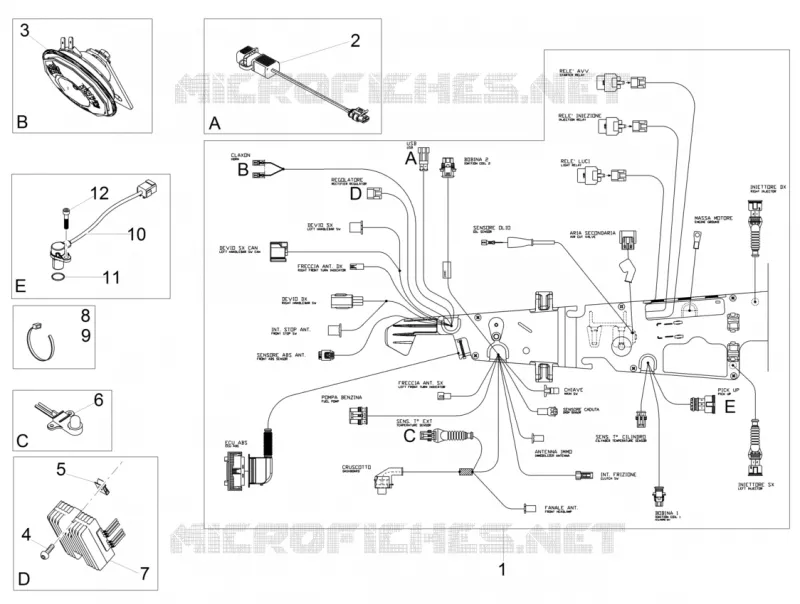

Find the detailed FRONT ELECTRICAL SYSTEM MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
