Engine displacement
850
2
Model
V9
3
Year
2020
4
Trim
V9 Bobber 850 Euro 4 ABS
5
Parts Catalog
REAR ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
Rear transmission / Components
by
Front headlamps
REAR ELECTRICAL SYSTEM
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
1
Faisceau de câbles
2D000209
£740,52 Unit Price incl. VAT
2
Faisceau de câbles
2D000245
£59,53 Unit Price incl. VAT
3
PASSE CABLE
070286
Not Available
4
Boîte à fusibles
584211
£62,24 Unit Price incl. VAT
5
Support p-fusibles
883161
£38,00 Unit Price incl. VAT
6
Vis M5x12
GU98682212
£1,06 Unit Price incl. VAT
7
Rondelle 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
8
Coiffe
2B002781
£85,75 Unit Price incl. VAT
9
BATTERIE YUASA 12V/14AH YTX14BS
638733
£195,61 Unit Price incl. VAT
10
Plaque fix.batterie
GU06418600
£10,74 Unit Price incl. VAT
11
Caoutchouc
AP8120001
£5,32 Unit Price incl. VAT
12
Vis
GU32517710
£5,20 Unit Price incl. VAT
13
PARE-POUSSIERE
AP8181140
£9,17 Unit Price incl. VAT
14
RESSORT
CM013202
£2,60 Unit Price incl. VAT
15
Passe-câble
894704
£13,38 Unit Price incl. VAT
16
Collier
B043850
£14,89 Unit Price incl. VAT
17
Collier 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
18
Collier 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
19
Embout appui batterie lat.
AP8144552
£33,10 Unit Price incl. VAT

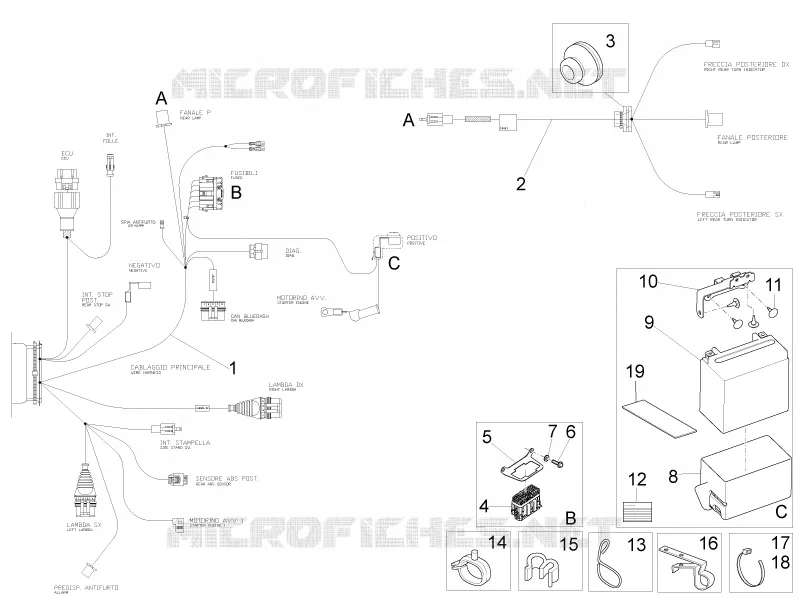

Find the detailed REAR ELECTRICAL SYSTEM MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
