Engine displacement
850
2
Model
V9
3
Year
2020
4
Trim
V9 Bobber 850 Euro 4 ABS
5
Parts Catalog
CRANKCASES I
6
Parts Diagram
Parts Catalog
OIL PUMP - OIL FILTER
by
FRONT ELECTRICAL SYSTEM
CRANKCASES I
1
1
2
2
3
3
4
4
5
5
5
5
6
6
6
6
6
6
7
7
7
7
8
8
8
8
9
9
10
10
10
10
11
11
12
12
12
12
13
13
14
14
15
15
16
16
16
16
17
17
17
17
17
17
18
18
18
18
18
18
19
19
19
19
20
20
21
21
22
22
23
23
24
24
25
25
1
Coupelle à huile
1A004550
Not Available
2
Sump gasket
1A005211
Not Available
3
Joint
GU19003800
£22,21 Unit Price incl. VAT
4
Tube de raccordement
1A006047
Not Available
5
RONDELLE
658837
£0,95 Unit Price incl. VAT
6
Ecrou M8x1,25
GU92606208
£0,94 Unit Price incl. VAT
7
Ecrou bridé
1A006656
Not Available
8
RONDELLE
1A006655
Not Available
9
Goupille
GU19018920
£4,40 Unit Price incl. VAT
10
GOUJON
1A004530
Not Available
11
BOUCHON
831135
£3,25 Unit Price incl. VAT
12
Vis sans tête
GU96451430
£5,36 Unit Price incl. VAT
13
Bouchon rempl. huile
883826
£34,91 Unit Price incl. VAT
14
Bague
GU19015020
£10,75 Unit Price incl. VAT
15
Bague d'étanchéité
886365
£58,19 Unit Price incl. VAT
16
Vis sans tête
GU96508055
£9,60 Unit Price incl. VAT
17
Vis sans tête
1A006283
Not Available
18
Vis sans tête
1A006284
Not Available
19
Prisionnier culasse
1A006860
Not Available
20
PIVOT DE CENTR.
484993
£1,16 Unit Price incl. VAT
21
Moteur
1A0131885
Not Available
22
Bouchon vid.huile M10X1
GU31003766
£15,77 Unit Price incl. VAT
23
Garniture
GU10528900
£4,45 Unit Price incl. VAT
24
Vis TCEI M6x25
GU98682325
£1,26 Unit Price incl. VAT
25
Joint torique 28,24x2,62
GU90706281
£5,23 Unit Price incl. VAT

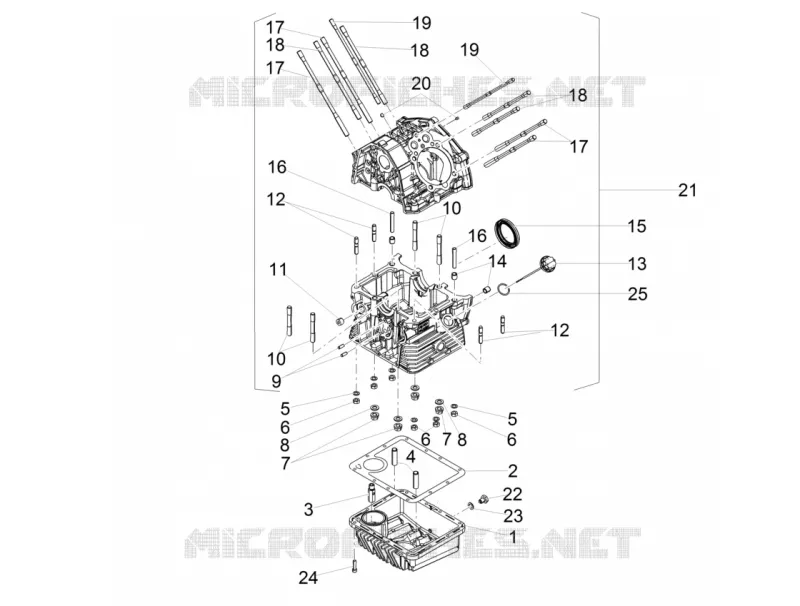

Find the detailed CRANKCASES I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
