Engine displacement
50
2
Model
SCARABEO
3
Year
1999
4
Trim
Scarabeo 2T (engine Minarelli)
5
Parts Catalog
Variator
6
Parts Diagram
Parts Catalog
Covers - kick starter
by
Clutch
Variator
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Nut M10x1,25
AP8206183
Not Available
2
Conical spring washer
AP8206204
Not Available
3
Toothed start clutch cup
AP8206141
Not Available
4
Front pulley drive plate
AP8206140
Not Available
5
Fixed pulley
AP8206116
Not Available
6
Blue steel washer D13,2x20
AP8222337
Not Available
7
Spacer D18x23x6,5
AP8206420
Not Available
7
Spacer D18x23x5
AP8206478
Not Available
8
T bush
AP8206479
Not Available
9
Starter motor gear Z=71
AP8206144
Not Available
10
Cage D57x61x10
AP8206210
Not Available
11
Roue libre complète
AP8206147
£60,92 Unit Price incl. VAT
12
Slider
AP8206698
Not Available
13
Plateau à axes
AP8206136
£21,25 Unit Price incl. VAT
14
Pin roller D8,8
AP8206701
Not Available
15
Pulley assy., driving
AP8222335
Not Available
16
Courroie de transmission
AP8206109
£61,07 Unit Price incl. VAT
17
Bush 13x18x38,2
AP8222336
Not Available

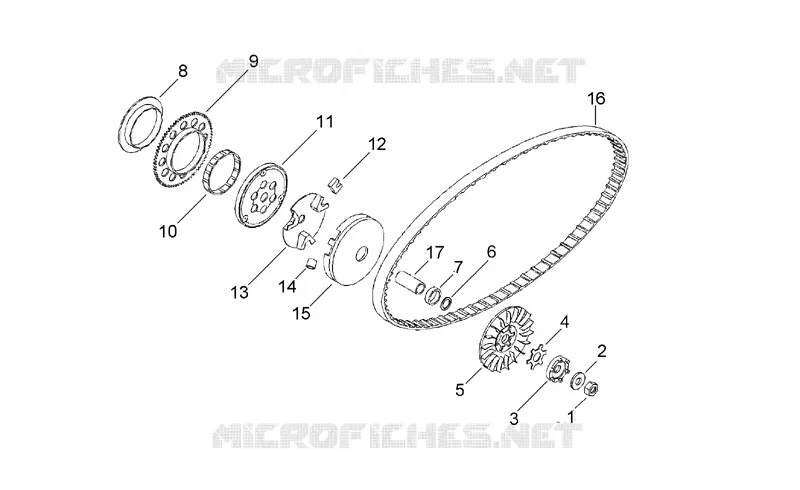

Find the detailed Variator MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
