Engine displacement
50
2
Model
SCARABEO
3
Year
1999
4
Trim
Scarabeo 2T (engine Minarelli)
5
Parts Catalog
Supply - Oil pump
6
Parts Diagram
Parts Catalog
Transmission final drive
by
Carburettor I
Supply - Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Screw M6x20
AP8502564
£0,96 Unit Price incl. VAT
2
Intake manifold D12
AP8206565
Not Available
2
Intake manifold
AP8206466
Not Available
3
Reed valve assy
AP8206557
Not Available
4
Fuel intake valve gasket
AP8206486
Not Available
5
Hose collar
AP8206181
Not Available
6
Anti-condensate breather
AP8220548
Not Available
7
Carburettor guard
AP8206473
Not Available
8
Hose clamp
AP8206711
Not Available
9
Oil pump assy.
AP8206119
Not Available
10
Screw
AP8508887
Not Available
11
Collier
AP8102378
£4,01 Unit Price incl. VAT
12
Fuel pipe 5,5x10
AP8120952
Not Available
13
Collier clic
AP8201225
£1,80 Unit Price incl. VAT

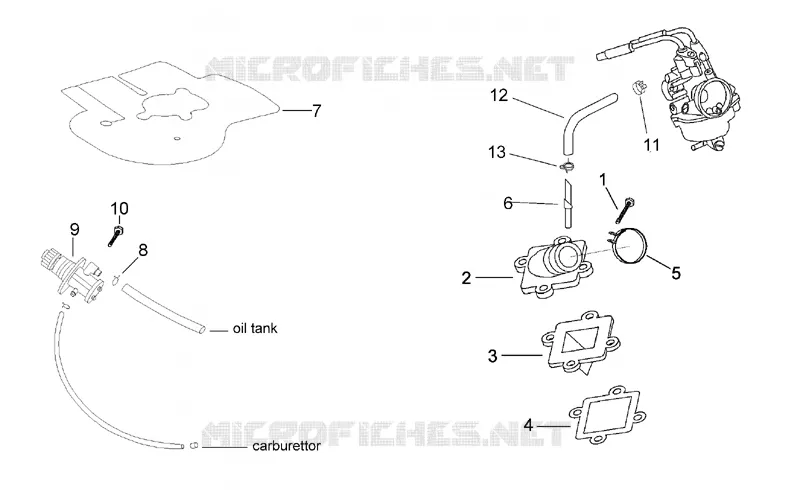

Find the detailed Supply - Oil pump MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
