Engine displacement
50
2
Model
SCARABEO
3
Year
1999
4
Trim
Scarabeo 2T (engine Minarelli)
5
Parts Catalog
Electrical system
6

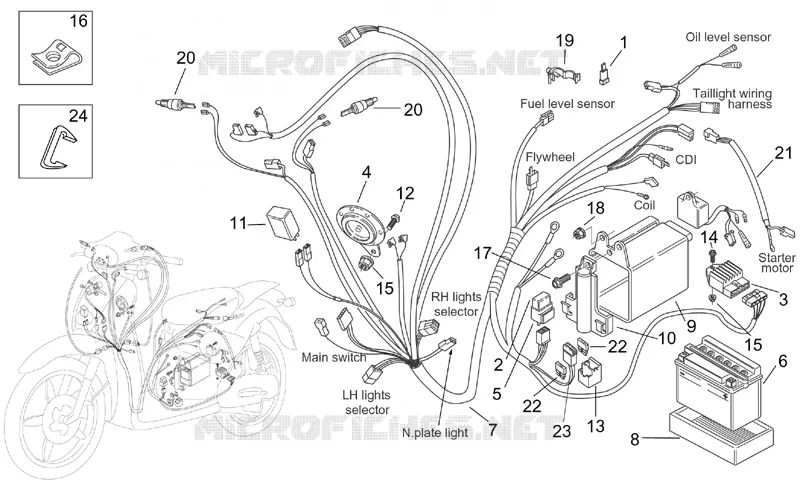

Parts Diagram
Parts Catalog
Turn indicators
by
Plate set
Electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
20
21
22
22
23
24
1
Diode
AP8212382
£16,38 Unit Price incl. VAT
2
Relay 12V-20A
AP8212469
Not Available
3
Voltage regulator
AP8212540
Not Available
4
Horn
AP8224038
Not Available
5
Caoutchouc
AP8220283
£2,39 Unit Price incl. VAT
6
Battery 12V-4Ah
AP8212110
Not Available
7
Main wiring harness
AP8224157
Not Available
7
Main wiring harness
AP8224250
Not Available
8
Boîtier batterie
AP8230535
£34,87 Unit Price incl. VAT
9
Battery holder, black
AP8231479
Not Available
10
Battery cover, black
AP8231192
Not Available
11
Clignotement
AP8124235
£24,49 Unit Price incl. VAT
12
Vis bride M6X16
AP8152278
£1,91 Unit Price incl. VAT
13
Rubber fuse box
AP8220342
Not Available
14
Vis bride
AP8152279
£1,87 Unit Price incl. VAT
15
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
16
Clip
AP8102375
£2,20 Unit Price incl. VAT
17
Vis bride
AP8152272
£1,88 Unit Price incl. VAT
18
Self-locking nut M5
AP8152306
Not Available
19
Guide-câble;
AP8134186
£0,86 Unit Price incl. VAT
20
Stop switch
AP8124818
Not Available
21
Starter motor wiring harness
AP8212670
Not Available
22
Fuse 7,5A
AP8112244
Not Available
23
Caoutchouc p-fusibles
AP8120754
£10,61 Unit Price incl. VAT
24
Ressort connecteurs;
AP8121309
£1,72 Unit Price incl. VAT
