Parts Catalog
Front body V - Internal shield
6
Parts Diagram
Parts Catalog
Front body IV - Front fairing
by
Front body VI - Front mudguard
Front body V - Internal shield
1
2
3
3
4
5
6
7
8
9
1
Internal shield, cyber cyan
AP8249240
Not Available
1
Internal shield, moon white
AP8248497
Not Available
1
Internal shield, lymph green
AP8248631
Not Available
1
Internal shield, night blue
AP8249325
Not Available
1
Internal shield, cyber cyan
AP8248517
Not Available
1
Internal shield, moon white
AP8249318
Not Available
1
Internal shield, night blue
AP8248537
Not Available
1
Internal shield, m.red
AP8248553
Not Available
1
Internal shield, cherry red
AP8248441
Not Available
1
Internal shield, black varn.
AP8248426
Not Available
1
Internal shield, el.cyan
AP8248763
Not Available
1
Internal shield, straw yellow
AP8248778
Not Available
1
Internal shield, twist cyan
AP8248646
Not Available
2
Vis à arrachement
AP8152140
£2,39 Unit Price incl. VAT
3
Vis taraud pour plast. Inox
AP8150413
£1,61 Unit Price incl. VAT
4
Type appr.data cover, cyan
AP8248504
Not Available
4
Inspection cover, c.cyan
AP8249320
Not Available
4
Appr.data cov., lymph green
AP8248633
Not Available
4
Inspection cover, tw.cyan
AP8248648
Not Available
4
Inspection cover, st.yellow
AP8248781
Not Available
4
Appr.data cov., m.red
AP8249280
Not Available
4
Inspection cover, n.blue
AP8249326
Not Available
4
Appr.data cov., black varn.
AP8248429
Not Available
4
Type appr.data cover, brown
AP8248524
Not Available
4
Inspection cover, m.white
AP8249319
Not Available
4
Appr.data cov., cherry red
AP8248444
Not Available
4
Inspection cover, el.cyan
AP8248766
Not Available
5
Screw w/ flange M5x12
AP8152302
Not Available
6
Aprilia milled key
AP8102880
Not Available
7
Vis
AP8150137
£1,27 Unit Price incl. VAT
8
Bloc démarreur-bloc
AP8201793
£85,19 Unit Price incl. VAT
9
Joint bloc démarr.
AP8220386
£8,00 Unit Price incl. VAT

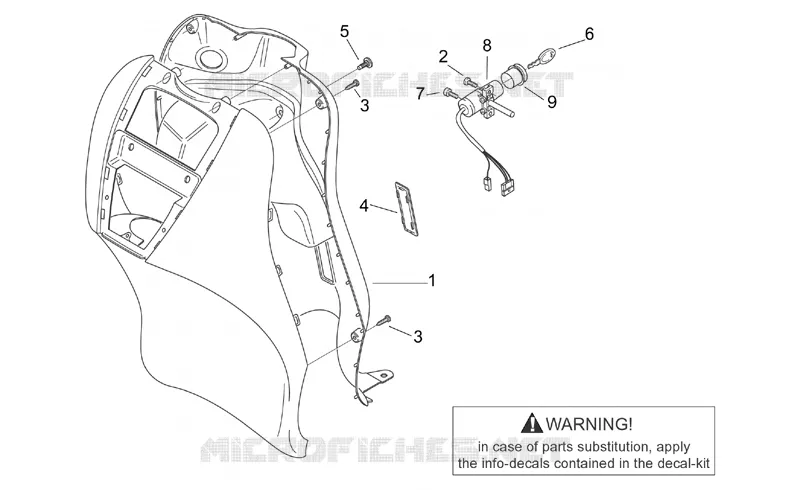

Find the detailed Front body V - Internal shield MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
