1
Engine displacement
50
2
Model
SCARABEO
3
Year
1999
4
Trim
Scarabeo 2T (engine Minarelli)
5
Parts Catalog

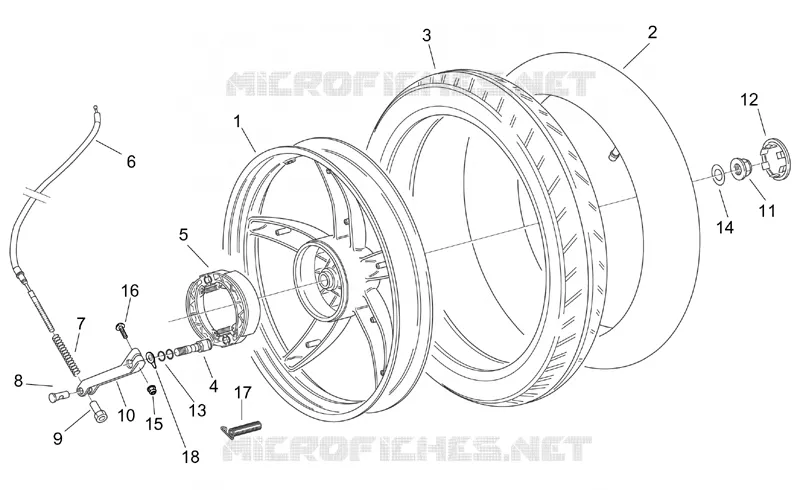

Rear wheel - drum brake
6
Parts Diagram
Parts Catalog
Rear wheel - disc brake
by
Lights
Rear wheel - drum brake
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Rear wheel
AP8208623
Not Available
1
Rear wheel
AP8208461
Not Available
2
Tyre
0000000
Not Available
3
Tyre
0000000
Not Available
4
Rear brake cam
AP8213319
Not Available
5
Brake shoes+springs
AP8213133
Not Available
6
Rear brake cable
AP8214123
Not Available
7
Res. hélic. compr
AP8213137
£2,59 Unit Price incl. VAT
8
Axe fix. câble frein
AP8221120
£35,82 Unit Price incl. VAT
9
Réglage levier frein arrière
AP8101103
£5,94 Unit Price incl. VAT
10
Levier frein AR br.galva;
AP8232678
£42,23 Unit Price incl. VAT
11
Écrou DAX brid.
AP8152244
£3,62 Unit Price incl. VAT
12
Rear wheel plug
AP8220367
Not Available
13
Joint torique
AP8120769
£0,96 Unit Price incl. VAT
14
Rondelle élastique
AP8150471
£4,14 Unit Price incl. VAT
15
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
16
Vis
AP8152136
£1,27 Unit Price incl. VAT
17
Guide-câble
AP8221209
£6,01 Unit Price incl. VAT
18
Brake wear indicator
AP8213435
Not Available

Find the detailed Rear wheel - drum brake MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
