Engine displacement
850
2
Model
V85
3
Year
2020
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
GEARBOX
6
Parts Diagram
Parts Catalog
GEAR CHANGE MECHANISM
by
REAR WHEEL
GEARBOX
1
1
2
3
3
4
4
4
5
6
6
6
6
6
7
8
9
9
9
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
21
22
23
24
25
26
27
28
29
1
Roulement à billes 20x52x15
GU92201822
£33,05 Unit Price incl. VAT
2
RONDELLE
873928
£10,54 Unit Price incl. VAT
3
Vis
B013608
£1,98 Unit Price incl. VAT
4
Rondelle
1A000566
Not Available
5
Arbre primaire
2A001002
£143,83 Unit Price incl. VAT
6
MOYEU
849308
£31,02 Unit Price incl. VAT
7
Engr. 5e sur prim.
1A000360
Not Available
8
RONDELLE
849424
£3,05 Unit Price incl. VAT
9
Anneau élastique
1A002604
Not Available
10
ENGRANAGE
1A000436
Not Available
11
Rondelle d'appui
B015040
£2,40 Unit Price incl. VAT
12
MOYEU
974162
£34,78 Unit Price incl. VAT
13
Engr. 6e sur prim.
1A000361
Not Available
14
RONDELLE
849396
£3,25 Unit Price incl. VAT
15
CIRCLIPS
974165
£2,95 Unit Price incl. VAT
16
Engr. 2e sur prim.
1A000365
Not Available
17
Roulement à billes
2A001011
£30,74 Unit Price incl. VAT
18
Engrenage
2A000988
£79,39 Unit Price incl. VAT
19
RONDELLE
849309
£3,13 Unit Price incl. VAT
20
Engrenage
2A000989
£90,80 Unit Price incl. VAT
21
RONDELLE
849310
£6,13 Unit Price incl. VAT
22
Engr. 4e sur sec.
1A000368
Not Available
23
Engr. 3e sur sec.
1A000367
Not Available
24
Gear 6a Z=24
1A000370
Not Available
25
Engr. 2e sur sec.
1A000366
Not Available
26
Arbre chang.
2A000998
£90,17 Unit Price incl. VAT
27
Rondelle
2A001013
£8,71 Unit Price incl. VAT
28
Roulement à billes 25x52x15
GU92201226
£50,18 Unit Price incl. VAT
29
Gasket ring 25X40X7
GU90412541
£22,12 Unit Price incl. VAT

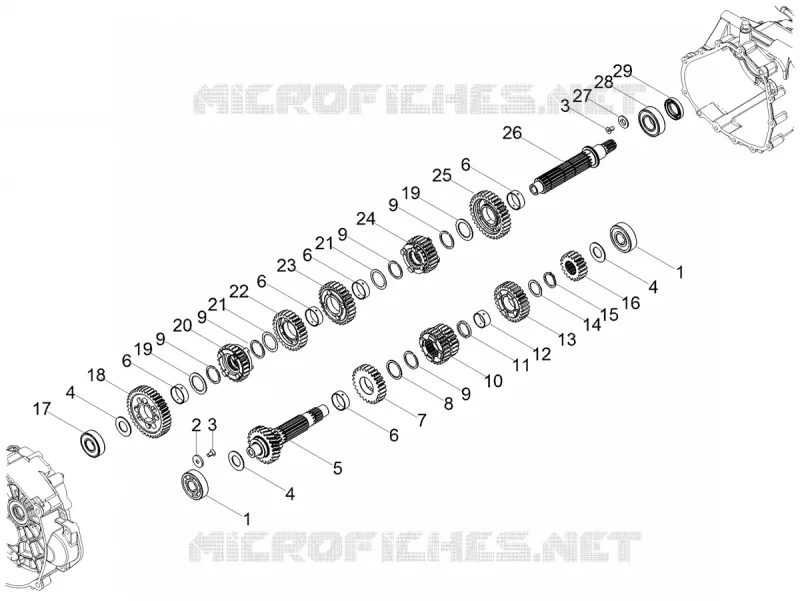

Find the detailed GEARBOX MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
