1
Engine displacement
850
2
Model
V85
3
Year
2020
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
FOOTRESTS
6
Parts Diagram
Parts Catalog
CRANKCASES I
by
Blow-by system
FOOTRESTS
1
2
2
2
2
3
3
3
4
4
5
5
5
5
6
6
7
7
7
7
8
8
8
8
9
9
9
9
10
10
11
11
12
13
13
14
14
15
16
17
18
19
20
21
22
22
22
22
1
R-pied pilote D
886184
£67,25 Unit Price incl. VAT
2
Vis bride
2B005143
£0,42 Unit Price incl. VAT
3
PLAQUE
AP8134276
£10,45 Unit Price incl. VAT
4
C/C repose pied pilote
AP8120831
£18,66 Unit Price incl. VAT
5
Anneau d'arrêt rad.
AP8152409
£1,38 Unit Price incl. VAT
6
Res.rap. plan. pil.;
AP8221277
£10,54 Unit Price incl. VAT
7
Pivot repose-pieds
AP8121567
£19,96 Unit Price incl. VAT
8
Vis
2B005999
£4,92 Unit Price incl. VAT
9
Plaque fdc r-pied;
AP8134451
£5,77 Unit Price incl. VAT
10
Res. hélic. compr
AP8121133
£3,22 Unit Price incl. VAT
11
BILLE D.7
AP8110110
£0,36 Unit Price incl. VAT
12
R-pied pilote G
886185
£67,25 Unit Price incl. VAT
13
Plaquette
GU32441210
£10,54 Unit Price incl. VAT
14
CAOUTCHOUC PLATE-FORME
2B002225
£8,00 Unit Price incl. VAT
15
Support repose-pieds dte
2B005628
£138,95 Unit Price incl. VAT
16
Support repose-pieds g.
2B005631
£138,95 Unit Price incl. VAT
17
Repose-pieds G
656509000C
Not Available
18
Repose-pieds D
656429000C
Not Available
19
Protection
2B006226
£67,67 Unit Price incl. VAT
20
Vis bride M6X16
AP8152278
£1,91 Unit Price incl. VAT
21
Rondelle
AP8150378
£1,27 Unit Price incl. VAT
22
Rondelle 8,4X15X1,8
GU95008208
£1,27 Unit Price incl. VAT

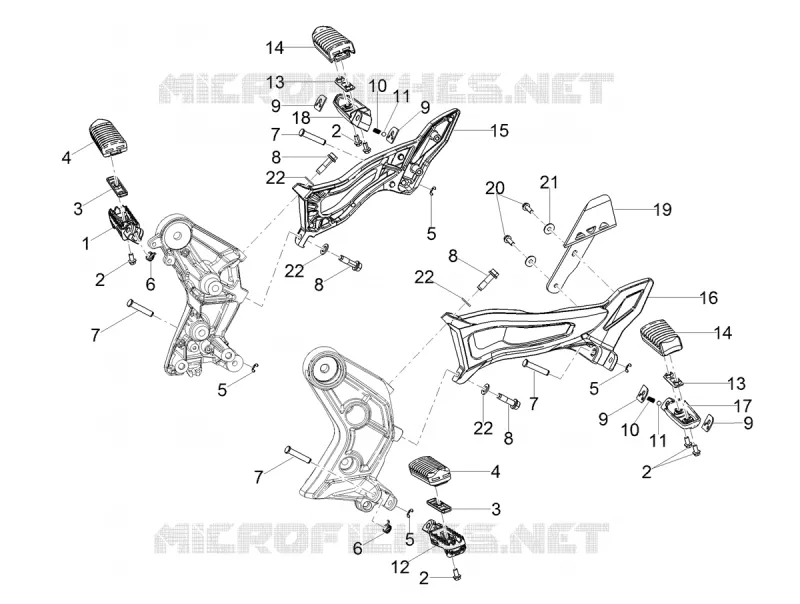

Find the detailed FOOTRESTS MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
