1
Engine displacement
1100
2
Model
SPORT
3
Year
1998
4
Trim
Sport Iniezione 1100
5
Parts Catalog
SWINGARM
6
Parts Diagram
Parts Catalog
Front fork
by
Electrical system
SWINGARM
1
2
3
4
5
6
7
7
8
9
10
11
1
Swing arm, black
GU01540200
Not Available
2
Ball bearing
GU92218418
£42,37 Unit Price incl. VAT
3
Pin
GU37547005
Not Available
4
Nut
GU30547800
£13,01 Unit Price incl. VAT
5
Rear shock absorber
GU01550200
Not Available
6
Top screw
GU98053670
Not Available
7
Washer 13x18x1,7
GU30217900
£1,58 Unit Price incl. VAT
8
Washer
GU95004213
£2,04 Unit Price incl. VAT
9
Nut
GU92630513
£3,18 Unit Price incl. VAT
10
Self-locking nut
GU92630512
£0,85 Unit Price incl. VAT
11
Lower screw
GU98610616
Not Available

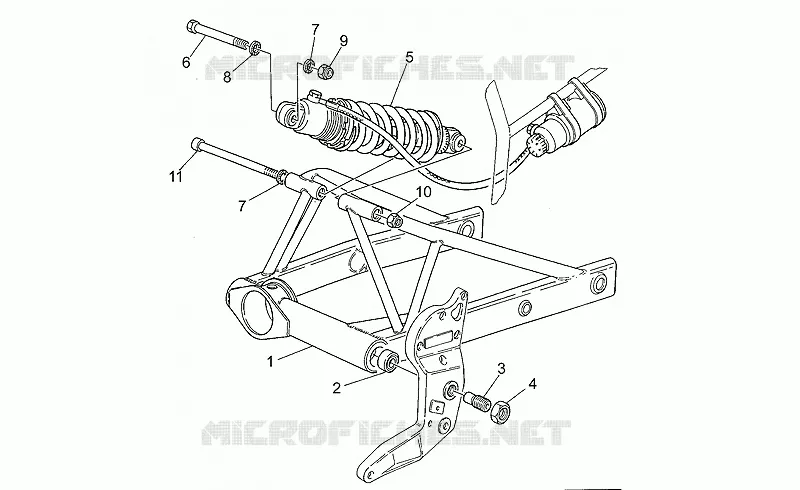

Find the detailed SWINGARM MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
