Engine displacement
1100
2
Model
SPORT
3
Year
1995
4
Trim
Sport Carburatori 1100
5
Parts Catalog
Carburettor
6
Parts Diagram
Parts Catalog
Gear-box components
by
Crankcase
Carburettor
62
61
60
58
57
56
55
54
52
50
48
47
46
45
44
43
41
40
37
35
34
33
31
30
29
27
26
25
24
23
22
21
20
19
18
17
15
15
15
15
15
15
15
15
15
14
13
12
11
10
9
8
7
6
5
5
5
4
3
3
2
2
1
1
1
Soupape gaz 60,5
GU37937505
Not Available
1
Soupape gaz 50,3
GU37937520
Not Available
2
Conical pin
GU28937750
Not Available
2
Conical pin
GU17937767
£13,28 Unit Price incl. VAT
3
Needle valve 266 AB
GU28935590
Not Available
3
Gicleur AB1 265
GU37935520
Not Available
4
Jet maximum 152
GU37935705
Not Available
5
Idle jet 45
GU13935900
£2,93 Unit Price incl. VAT
5
Idle jet 57
GU28935960
Not Available
5
Gicleur minimum 52
GU37935920
£7,37 Unit Price incl. VAT
6
Starter jet 60
GU19936000
£9,53 Unit Price incl. VAT
7
Pump jet 35
GU28939060
Not Available
8
Needle valve 300
GU14939150
Not Available
9
Float
GU14933000
Not Available
10
Capuchon
GU37937005
Not Available
11
Tyre
0000000
Not Available
12
Tyre
0000000
Not Available
13
Tyre
0000000
Not Available
14
Ressort
GU37937106
Not Available
15
Tyre
0000000
Not Available
17
screw
GU14934650
£1,79 Unit Price incl. VAT
18
Tyre
0000000
Not Available
19
Spring
GU14938050
Not Available
20
Lever
GU14938150
Not Available
21
Cap
GU13937000
£2,53 Unit Price incl. VAT
22
Tyre
0000000
Not Available
23
Tyre
0000000
Not Available
24
Valve spring
GU39937600
Not Available
25
Starter valve
GU13937800
£12,94 Unit Price incl. VAT
26
Tyre
0000000
Not Available
27
Tyre
0000000
Not Available
29
screw
GU30936210
Not Available
30
Tyre
0000000
Not Available
31
Flat washer
GU65933700
Not Available
33
Gas valve adjuster screw
GU13936600
Not Available
34
Spring
GU13936700
Not Available
35
Flat washer
GU14931650
Not Available
37
Tyre
0000000
Not Available
40
Tyre
0000000
Not Available
41
Tyre
0000000
Not Available
43
Nut
GU14936450
Not Available
44
Tyre
0000000
Not Available
45
Tyre
0000000
Not Available
46
Washer
GU13932900
Not Available
47
Spring
GU14936950
£16,73 Unit Price incl. VAT
48
Diaphragm
GU14931050
Not Available
50
Tyre
0000000
Not Available
52
Tyre
0000000
Not Available
54
Tyre
0000000
Not Available
55
Fuel filter
GU43934000
£2,52 Unit Price incl. VAT
56
Fuel pipe union cap
GU13934600
£1,96 Unit Price incl. VAT
57
Cap fixing screw
GU10934900
Not Available
58
Intake valve
GU14931350
Not Available
60
Float pin
GU13933100
£17,57 Unit Price incl. VAT
61
Jeu de joints
GU37939905
Not Available
62
Kit soupape gaz
GU37939920
Not Available

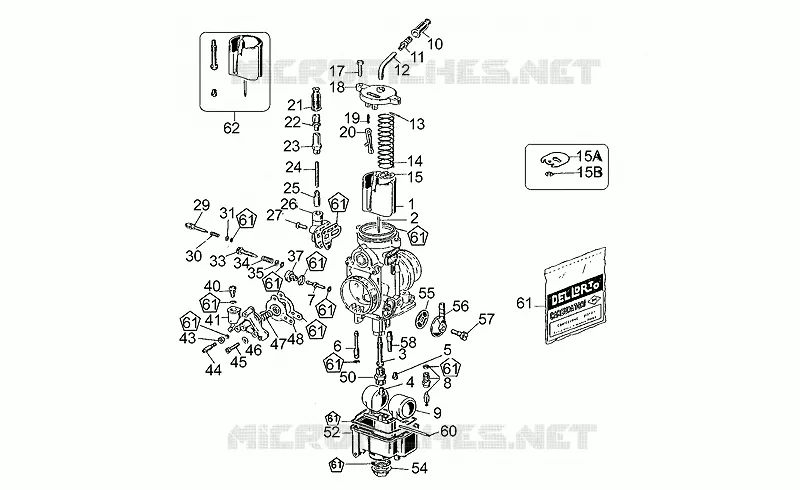

Find the detailed Carburettor MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
