Engine displacement
500
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo Light
5
Parts Catalog
Engine assembly
6
Parts Diagram
Parts Catalog
Handlebar
by
Cylinder
Engine assembly
1
2
3
1
Engine 500 cc.
5046605
Not Available
1
Engine 500 cc.
CM1522145
Not Available
1
Engine 500 cc.
5047405
Not Available
1
Engine 400 cc.
CM1524195
Not Available
1
Engine 492cc
CM1500195
Not Available
2
Cylinder gasket kit
497090
Not Available
3
Engine set gasket
497091
Not Available

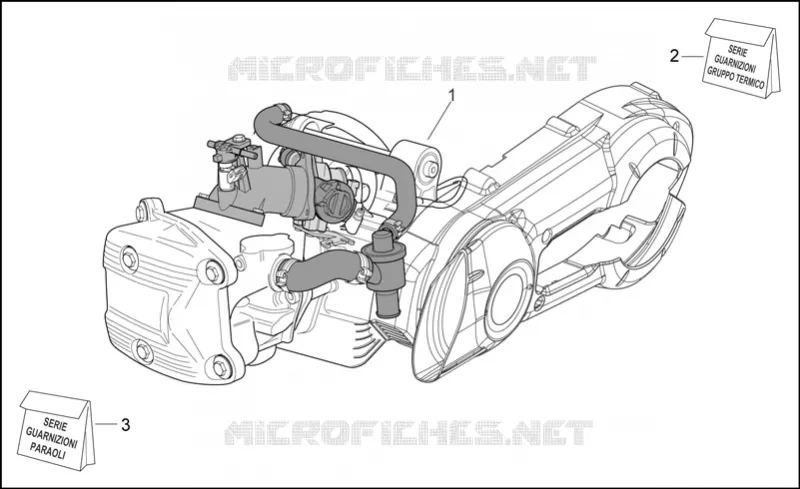

Find the detailed Engine assembly MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
