Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Ming Xing fron fork
by
Oil pump
Cylinder head
1
1
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
1
Stud bolt M7
435629
£1,87 Unit Price incl. VAT
2
Valve half-cone
285846
£1,98 Unit Price incl. VAT
3
Upper cap
483914
£5,71 Unit Price incl. VAT
4
Spring
828480
£11,04 Unit Price incl. VAT
5
Valve gasket ring
436438
£11,03 Unit Price incl. VAT
6
Cup
AP8580069
Not Available
7
Intake valve
872999
Not Available
8
Exhaust valve
873009
Not Available
9
Cylinder head gasket 0,3 mm
848168
Not Available
10
Cylinder head assy.
872864
Not Available
11
screw
844160
Not Available
12
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
13
Locating dowel Ø11x10
478115
Not Available
14
Exhaust pipe gasket
480853
£5,16 Unit Price incl. VAT
15
Hex socket screw M5x20
845753
Not Available
16
Thermostat cover
876943
Not Available
17
Thermostat
82831R
Not Available
18
Temperature gauge
640485
Not Available
19
Gasket
297027
£1,51 Unit Price incl. VAT
20
O-ring
478184
Not Available
21
Bleed screw
845605
£15,49 Unit Price incl. VAT
22
Bleed valve cap
063435
Not Available

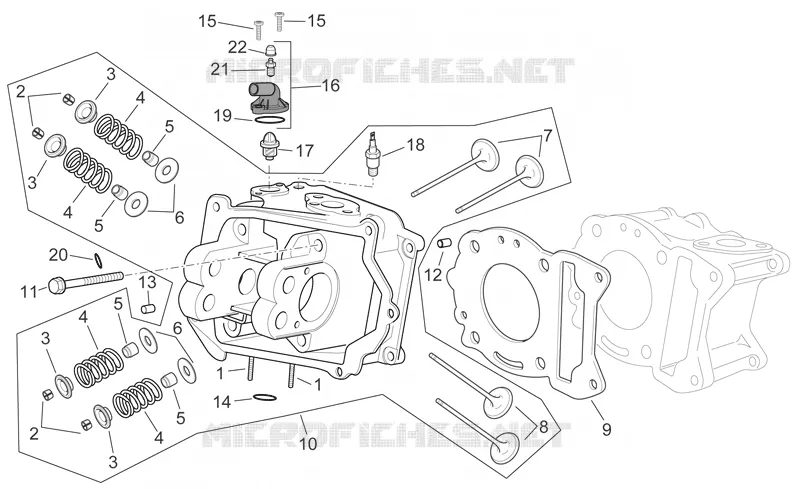

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
