Engine displacement
1200
2
Model
GRISO
3
Year
2008
4
Trim
Griso 8V E3
5
Parts Catalog
Oil radiator
6

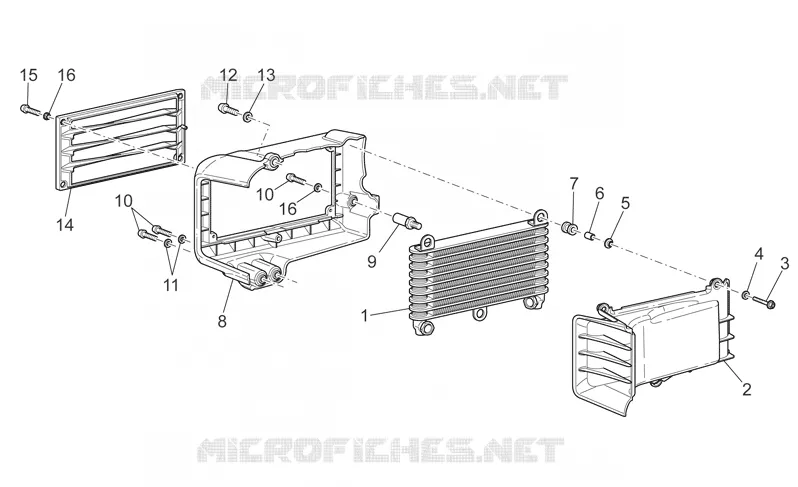

Parts Diagram
Parts Catalog
Rear brake caliper
by
Timing system
Oil radiator
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
16
1
Oil cooler cpl.
GU06162000
Not Available
2
Air deflector
GU06583200
£43,80 Unit Price incl. VAT
3
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
4
Washer 6,4x13x1,5
GU95005306
£1,27 Unit Price incl. VAT
5
Bush
AP8121032
£3,88 Unit Price incl. VAT
6
Spacer 7x10x11
GU91180711
£4,16 Unit Price incl. VAT
7
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
8
Cover
GU06583000
£426,00 Unit Price incl. VAT
9
Spacer
GU06583600
£15,37 Unit Price incl. VAT
10
screw M8x40
GU98690440
£2,64 Unit Price incl. VAT
11
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
12
Screw M10x30
GU98690540
£7,40 Unit Price incl. VAT
13
Washer 10,5x16x1
GU19149800
£0,38 Unit Price incl. VAT
14
Water cooler grille
GU06582600
£10,76 Unit Price incl. VAT
15
Hex socket screw
GU98230512
Not Available
16
T bush
AP8121811
£1,27 Unit Price incl. VAT

Find the detailed Oil radiator MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
