Engine displacement
1200
2
Model
GRISO
3
Year
2008
4
Trim
Griso 8V E3
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Headlight/Horn
by
Oil pump
1
2
3
4
5
6
7
7
8
9
9
10
11
12
13
14
1
Oil pump assy.
874650
£313,80 Unit Price incl. VAT
2
Cover
GU31159050
£16,44 Unit Price incl. VAT
3
Washer
GU30158900
£8,10 Unit Price incl. VAT
4
Washer 18,25x24x1
GU18144350
£6,66 Unit Price incl. VAT
5
Spring
829486
£1,72 Unit Price incl. VAT
6
Oil pressure valve
829661
£11,54 Unit Price incl. VAT
7
O-ring
237553
£1,87 Unit Price incl. VAT
8
Gasket
874482
£7,74 Unit Price incl. VAT
9
screw
414835
Not Available
10
Pin 2x13,8
874801
£5,09 Unit Price incl. VAT
11
Oil pump gear
874616
£267,74 Unit Price incl. VAT
12
Washer 6,4x12
GU03013800
£1,98 Unit Price incl. VAT
13
Washer 6,4x13x1,5
GU95005306
£1,27 Unit Price incl. VAT
14
Low nut
873906
£10,18 Unit Price incl. VAT

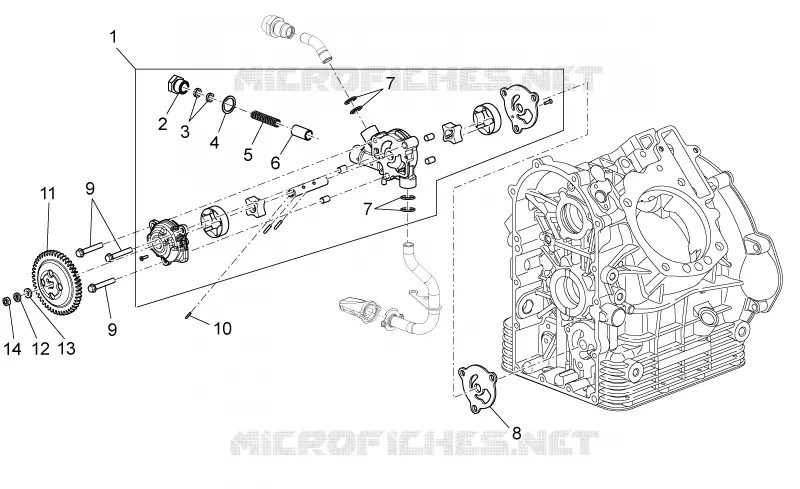

Find the detailed Oil pump MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
