Engine displacement
1200
2
Model
GRISO
3
Year
2013
4
Trim
Griso S.E. E3
5
Parts Catalog
Headlight/Horn
6
Parts Diagram
Parts Catalog
SE Front wheel
by
Oil pump
Headlight/Horn
1
2
3
4
5
6
6
7
7
8
9
10
11
11
12
13
14
15
16
17
17
18
19
19
20
20
21
22
23
24
25
26
26
26
27
28
1
Headlight
978311
£447,67 Unit Price incl. VAT
1
Cpl headlightsteering headligh
GU06740501
£542,88 Unit Price incl. VAT
1
Cpl headlightsteering headligh
978662
£528,96 Unit Price incl. VAT
1
Headlight
GU06740500
£517,03 Unit Price incl. VAT
2
Cap, black
981149
£171,94 Unit Price incl. VAT
2
Headlight cap, chr.
GU06740200
£171,94 Unit Price incl. VAT
3
Chromed ring nut
640598
£104,18 Unit Price incl. VAT
4
Lamp H4 12V-60/55W
292723
£18,91 Unit Price incl. VAT
5
Lamp 12V-5W
292022
Not Available
6
Screw M8x30
GU98700430
£7,98 Unit Price incl. VAT
7
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
8
RH support
GU06496100
£208,93 Unit Price incl. VAT
9
LH support
GU06496200
£201,18 Unit Price incl. VAT
10
Nut M8x1,25
GU92650138
£1,26 Unit Price incl. VAT
11
Hex socket screw
GU98610335
£1,26 Unit Price incl. VAT
12
T bush
AP8221023
£1,64 Unit Price incl. VAT
13
Rubber spacer *
AP8120675
Not Available
14
Hex socket screw
GU98230619
£2,59 Unit Price incl. VAT
15
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT
16
RH front/LH rear turn indic.
GU06750600
£55,98 Unit Price incl. VAT
17
Hex socket screw
GU98690335
£5,23 Unit Price incl. VAT
18
Cap nut M6x1
GU92787006
£7,98 Unit Price incl. VAT
19
Turn indicator lens
GU06753700
£9,22 Unit Price incl. VAT
20
Lamp
GU93450127
£3,11 Unit Price incl. VAT
21
LH front/RH rear turn indic.
GU06751601
£55,98 Unit Price incl. VAT
22
Electric hom L
GU01743791
Not Available
22
Electric hom L
883463
£41,35 Unit Price incl. VAT
23
Electric hom H
883462
£41,35 Unit Price incl. VAT
23
Electric hom H
GU01743790
Not Available
24
Hex socket screw M8x16
GU98350416
£0,38 Unit Price incl. VAT
25
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
26
Spacer, black
GU01753440
£20,23 Unit Price incl. VAT
27
O-ring
883417
£0,94 Unit Price incl. VAT
28
Light assembly
GU06740400
£231,29 Unit Price incl. VAT

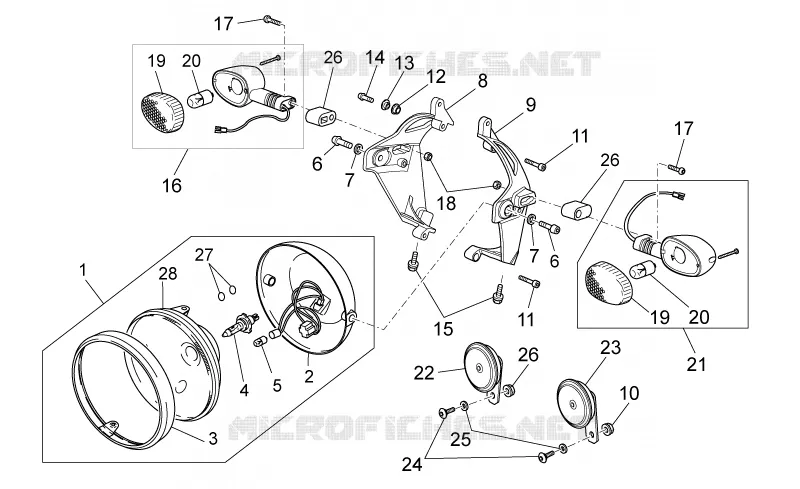

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
