Engine displacement
1200
2
Model
GRISO
3
Year
2008
4
Trim
Griso 8V E3
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Taillight
by
Trans.cpl.-Bevel gear
Fuel tank
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
17
1
Fuel tank, black
GU0610020000Y02
Not Available
1
Fuel tank, grey
88797200YE3
£1 678,96 Unit Price incl. VAT
1
Fuel tank blank
GU06100200
£2 088,71 Unit Price incl. VAT
1
Fuel tank, green
GU0610020000YV2
£478,79 Unit Price incl. VAT
1
Fuel tank, red
GU0610020000Y01
Not Available
1
Fuel tank, white
GU0610020000BM
Not Available
2
Plug ring nut
GU06102300
£136,26 Unit Price incl. VAT
3
Screw
GU98710215
£2,35 Unit Price incl. VAT
4
Tank cap
GU06103900
£126,91 Unit Price incl. VAT
5
Hex socket screw M5x14
B043864
£2,24 Unit Price incl. VAT
6
Hex socket screw M6x40
GU98680340
£1,26 Unit Price incl. VAT
7
Fuel tank bush
GU06107100
£16,19 Unit Price incl. VAT
8
Rubber spacer
AP8144328
£3,12 Unit Price incl. VAT
9
T bush *
AP8121075
£1,96 Unit Price incl. VAT
10
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
11
T bush *
GU06704901
£8,03 Unit Price incl. VAT
12
Silent-block
GU93222023
£15,01 Unit Price incl. VAT
13
Insert
2B001203
£7,32 Unit Price incl. VAT
14
O-ring 2018
AP8120965
£1,06 Unit Price incl. VAT
15
Breather pipe 4x8
AP8220263
Not Available
16
3-way union
AP8104666
£16,02 Unit Price incl. VAT
17
O-ring 164,69X3,53
977062
£26,99 Unit Price incl. VAT

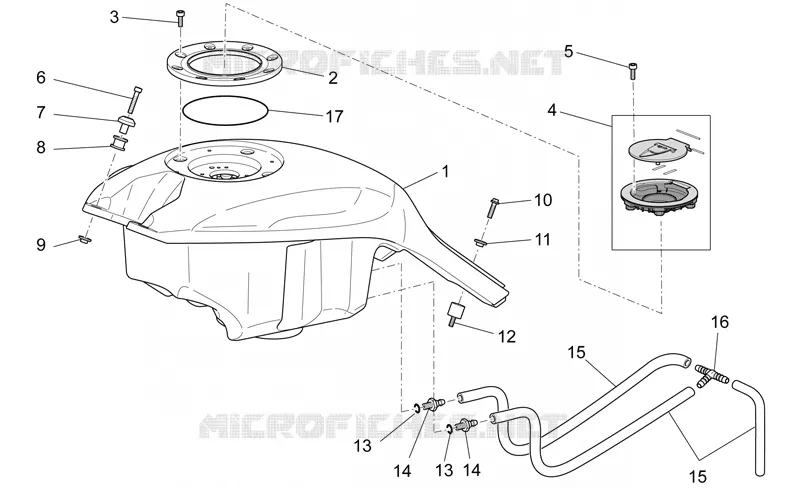

Find the detailed Fuel tank MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
