Engine displacement
1200
2
Model
GRISO
3
Year
2008
4
Trim
Griso 8V E3
5
Parts Catalog
Front body - Duct
6
Parts Diagram
Parts Catalog
Lock hardware kit
by
SE Front wheel
Front body - Duct
1
2
2
2
2
2
3
3
4
4
5
6
6
7
8
9
9
9
10
11
1
RH air duct, black
88797300YN1
£344,23 Unit Price incl. VAT
1
RH air duct, red
97840400Y01
£115,37 Unit Price incl. VAT
1
RH air duct, green
97840400YV2
£285,37 Unit Price incl. VAT
1
RH air duct, black
97840400Y02
£285,37 Unit Price incl. VAT
1
RH air duct,white
97840400BM
£285,37 Unit Price incl. VAT
2
Screw w/ flange M5x12
AP8152302
Not Available
3
Antivibration bush
GU93231605
£2,59 Unit Price incl. VAT
4
Rubber spacer
AP8220162
£5,44 Unit Price incl. VAT
5
RH Covers
GU06576800
£38,12 Unit Price incl. VAT
6
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
7
LH Covers
GU06576900
£38,93 Unit Price incl. VAT
8
Protection
GU06729800
£12,37 Unit Price incl. VAT
9
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
10
LH air duct, white
97840500BM
£138,44 Unit Price incl. VAT
10
LH air duct, black
97840500Y02
£285,37 Unit Price incl. VAT
10
LH air duct, red
97840500Y01
£285,37 Unit Price incl. VAT
10
LH air duct, black
88797400YN1
£289,92 Unit Price incl. VAT
10
LH air duct, green
97840500YV2
£291,42 Unit Price incl. VAT
11
Guard
GU06783600
£7,74 Unit Price incl. VAT

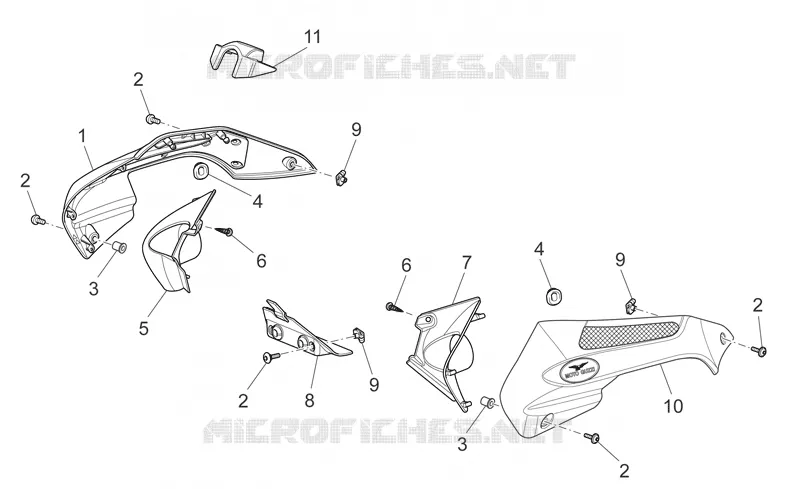

Find the detailed Front body - Duct MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
