1
Engine displacement
1200
2
Model
GRISO
3
Year
2008
4
Trim
Griso 8V E3
5
Parts Catalog
Cylinder head - valves
6
Parts Diagram
Parts Catalog
Front master cilinder
by
Taillight
Cylinder head - valves
1
2
3
4
4
5
5
5
5
6
6
6
6
7
7
7
7
8
8
8
8
9
9
9
9
10
10
11
11
1
RH cylinder head
878556
Not Available
1
RH cylinder head
872756
Not Available
2
LH cylinder head
878553
Not Available
2
LH cylinder head
872755
Not Available
3
Intake valve
872695
£64,93 Unit Price incl. VAT
4
Exhaust valve
872696
£100,43 Unit Price incl. VAT
5
Lower cup
874127
£30,86 Unit Price incl. VAT
6
Valve gasket ring
436438
£11,03 Unit Price incl. VAT
7
Valve spring
874335
Not Available
8
Valve half-cone
285846
£1,98 Unit Price incl. VAT
9
Upper cup
874126
£50,63 Unit Price incl. VAT
10
Exhaust pipe stud bolt M8x3x46
827018
Not Available
11
Pin 11,8X10
825597
£2,35 Unit Price incl. VAT

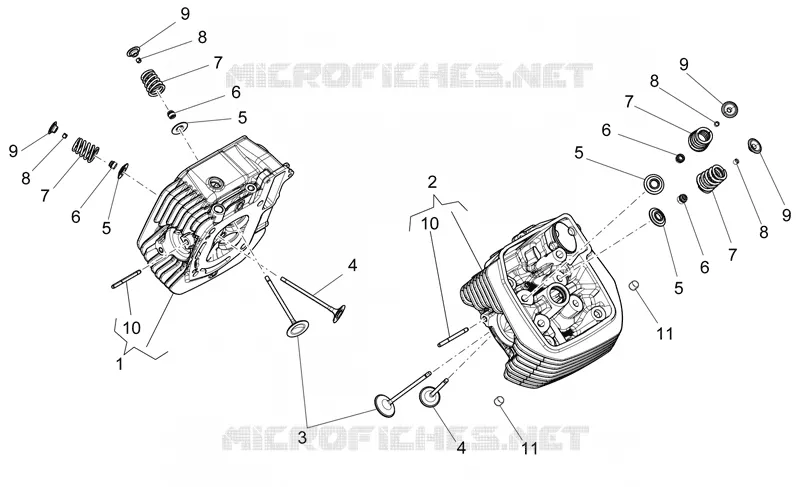

Find the detailed Cylinder head - valves MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
