Engine displacement
1200
2
Model
GRISO
3
Year
2008
4
Trim
Griso 8V E3
5
Parts Catalog
Clutch
6
Parts Diagram
Parts Catalog
Swing arm
by
Dashboard
Clutch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Clutch cpl.
976023
Not Available
2
Clutch disc
976053
£48,91 Unit Price incl. VAT
3
Clutch command cylinder
978739
£108,72 Unit Price incl. VAT
4
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
5
Hex socket screw M7x16
976535
£13,16 Unit Price incl. VAT
6
screw
GU98230612
£1,36 Unit Price incl. VAT
7
Screw w/ flange M8x25
976481
£2,47 Unit Price incl. VAT
8
Conical spring washer 8,2X15
976484
£2,47 Unit Price incl. VAT
9
Clutch drive tapped
976563
Not Available
10
Bushing
976564
£10,44 Unit Price incl. VAT
11
Bush
GU14085900
£2,48 Unit Price incl. VAT
12
Rod L=mm184,5
976594
£97,25 Unit Price incl. VAT
12
Rod L= 185.5mm
B063012
£15,61 Unit Price incl. VAT
12
Rod L=mm183
976593
£97,25 Unit Price incl. VAT
12
Rod L=mm186
976595
£97,25 Unit Price incl. VAT
12
Rod L=1,185mm
B0630111
£54,96 Unit Price incl. VAT
12
Rod L=mm187,5
976596
£97,25 Unit Price incl. VAT
13
Inner body
GU14086000
£82,28 Unit Price incl. VAT
14
Engine bearing set
976696
£79,07 Unit Price incl. VAT

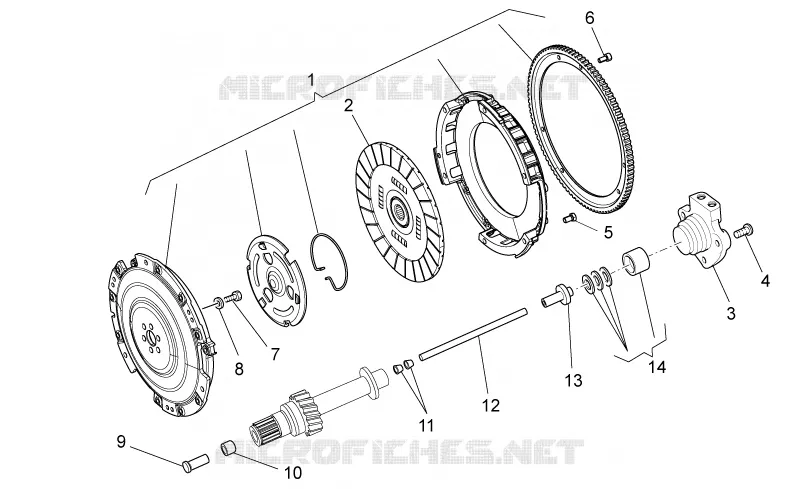

Find the detailed Clutch MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
