Engine displacement
1200
2
Model
GRISO
3
Year
2008
4
Trim
Griso 8V E3
5
Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Gear box selector
by
Blow-by system
Air box
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
4
5
5
6
7
19
20
21
1
Air box
GU06114000
£114,73 Unit Price incl. VAT
2
Air filter
AP8104329
£14,45 Unit Price incl. VAT
3
Inspection cover
GU06113300
£14,09 Unit Price incl. VAT
4
Gasket D4
AP8120593
Not Available
5
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
6
Protection
GU06114200
£12,95 Unit Price incl. VAT
7
Cover
GU06113700
Not Available
8
Intake hose
AP8144164
£159,62 Unit Price incl. VAT
9
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
10
Air temp. Sensor
GU30729330
£122,47 Unit Price incl. VAT
11
Gasket
GU30027931
£3,25 Unit Price incl. VAT
12
Filter housing support spindle
AP8221270
£17,33 Unit Price incl. VAT
13
Rubber spacer
AP8220526
£7,56 Unit Price incl. VAT
14
Washer 6,4x12
GU03013800
£1,98 Unit Price incl. VAT
15
Cap nut M6x1
GU92787006
£7,98 Unit Price incl. VAT
16
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
17
T bush
AP8221023
£1,64 Unit Price incl. VAT
18
Fuel pipe 6x10
AP8144038
£38,70 Unit Price incl. VAT
19
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
20
Plug
AP8120876
£8,23 Unit Price incl. VAT
21
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT

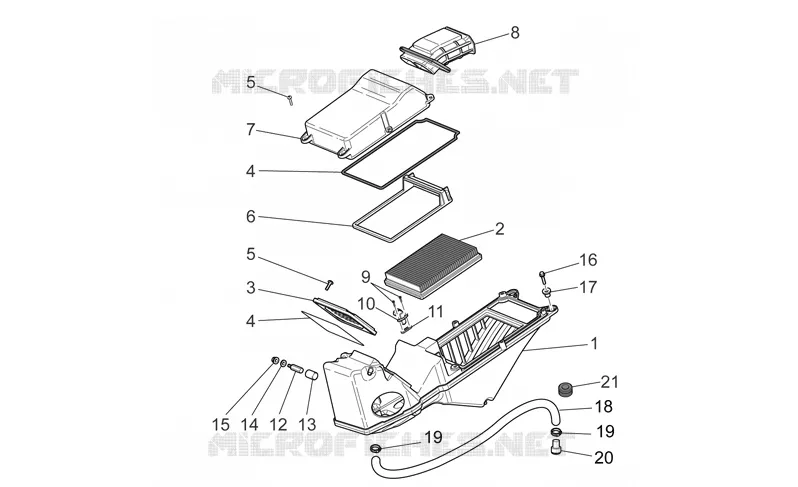

Find the detailed Air box MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
