1
Engine displacement
1200
2
Model
GRISO
3
Year
2008
4
Trim
Griso 8V E3
5
Parts Catalog
Std Rear wheel
6
Parts Diagram
Parts Catalog
Throttle body
by
Rear brake caliper
Std Rear wheel
1
2
3
3
4
4
5
6
7
8
9
1
Rear wheel, grey 5,5x17"
GU05630531
£1 318,54 Unit Price incl. VAT
1
Rear wheel, grey 5,5X17"
883886
£187,10 Unit Price incl. VAT
2
Tubeless tyre valve
GU03617710
£27,68 Unit Price incl. VAT
3
Conical bush
GU05632730
£8,03 Unit Price incl. VAT
4
Screw w/ flange M12x65
GU97202665
£18,66 Unit Price incl. VAT
5
Cover
GU05634430
£16,56 Unit Price incl. VAT
6
Rear brake disc
GU05635730
£92,17 Unit Price incl. VAT
7
screw
GU30611460
£4,01 Unit Price incl. VAT
8
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
9
Dust cover ring
977056
£11,42 Unit Price incl. VAT

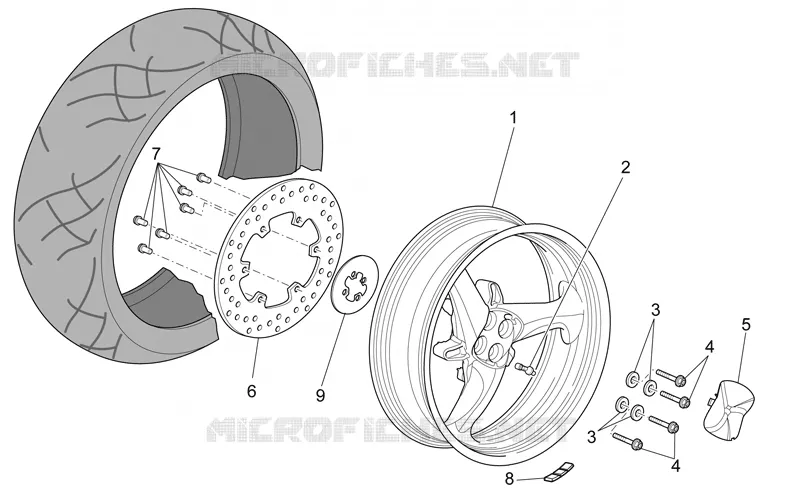

Find the detailed Std Rear wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
