Engine displacement
1200
2
Model
GRISO
3
Year
2008
4
Trim
Griso 8V E3
5
Parts Catalog
Starter motor
6
Parts Diagram
Parts Catalog
Oil filters
by
Frame
Starter motor
1
2
3
4
5
6
7
8
9
1
Starter motor Bosch
GU05730730
£328,84 Unit Price incl. VAT
2
Hex screw M8x75
GU98082475
£1,78 Unit Price incl. VAT
3
Washer 8,4x15
GU03270300
£0,19 Unit Price incl. VAT
4
Cover chrime grey
GU05733330
£49,75 Unit Price incl. VAT
5
Adhesive sponge
AP8117200
£13,44 Unit Price incl. VAT
6
Hex socket screw M6x10
GU98370609
£2,04 Unit Price incl. VAT
7
Bush
AP8121032
£3,88 Unit Price incl. VAT
8
Stud bolt
GU03469201
£8,12 Unit Price incl. VAT
9
Washer 6,4x12
GU03013800
£1,98 Unit Price incl. VAT

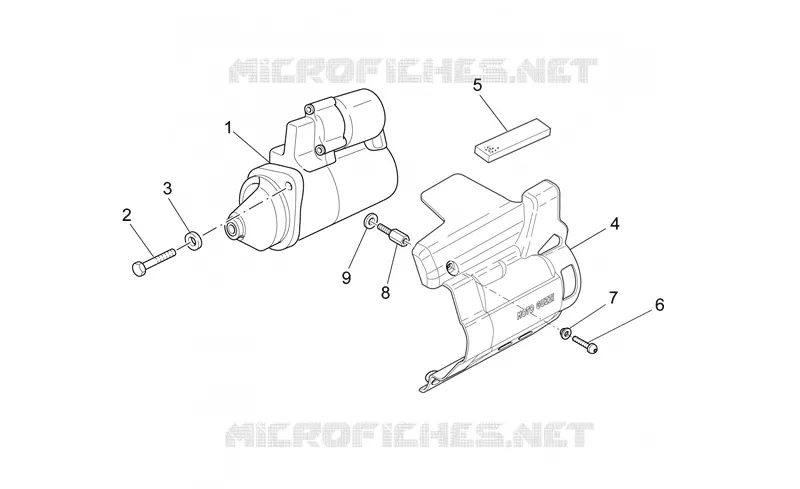

Find the detailed Starter motor MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
