Parts Catalog
Transmission cage
6
Parts Diagram
Parts Catalog
Front fork
by
Gear lever
Transmission cage
1
2
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
1
Clutch drum nero
976453
Not Available
2
Screw w/ flange M6x55
GU97202355
£2,47 Unit Price incl. VAT
3
Cover
GU93180220
£3,68 Unit Price incl. VAT
4
Hex socket screw M6x16 inox
GU98370616
£2,48 Unit Price incl. VAT
5
Transmission cage
879869
Not Available
6
Oil plug M18x1,5
GU95980319
£13,40 Unit Price incl. VAT
7
Washer 18,25x24x1
GU18144350
£6,66 Unit Price incl. VAT
8
Breather plug
GU05204930
£20,78 Unit Price incl. VAT
9
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
10
Sensor
GU19207220
£88,42 Unit Price incl. VAT
11
Gasket 8.7x14.2x1.3
B063025
£4,70 Unit Price incl. VAT
12
Gasket ring 14x24x7
GU90401424
£34,70 Unit Price incl. VAT
13
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
14
Bushing 6,6x9x13
GU19002020
£8,24 Unit Price incl. VAT
15
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
16
Fuel pipe 5,5x10
AP8120952
Not Available
17
Gear box assy
976934
Not Available

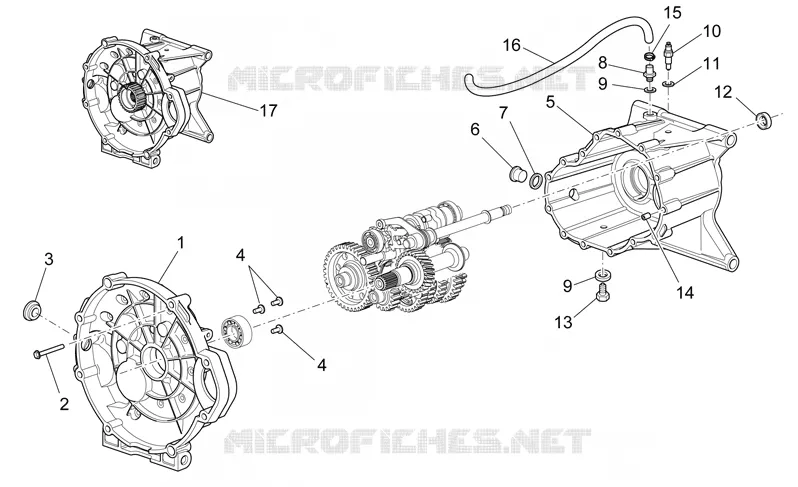

Find the detailed Transmission cage MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Griso 8V E3

Lateral stand
