1
Engine displacement
1200
2
Model
GRISO
3
Year
2008
4
Trim
Griso 8V E3
5
Parts Catalog
Taillight
6
Parts Diagram
Parts Catalog
Cylinder head - valves
by
Fuel tank
Taillight
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
14
15
16
1
Taillight
GU06740900
Not Available
2
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
3
Number-plate light
AP8127098
Not Available
4
Hex socket screw
GU98680222
£2,47 Unit Price incl. VAT
5
Washer 5,3x10x0,8
GU95008205
£1,26 Unit Price incl. VAT
6
Bush
GU91120507
£10,75 Unit Price incl. VAT
7
Support rubber part
GU32474710
£2,44 Unit Price incl. VAT
8
Self-locking nut M5
AP8152306
Not Available
9
Lamp 12V-5W
292022
Not Available
10
Plate light wiring
977795
£21,23 Unit Price incl. VAT
11
RH front/LH rear turn indic.
GU06750600
£55,98 Unit Price incl. VAT
12
Turn indicator lens
GU06753700
£9,22 Unit Price incl. VAT
13
Lamp
GU93450127
£3,11 Unit Price incl. VAT
14
Hex socket screw
GU98370619
£1,58 Unit Price incl. VAT
15
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
16
LH front/RH rear turn indic.
GU06751601
£55,98 Unit Price incl. VAT

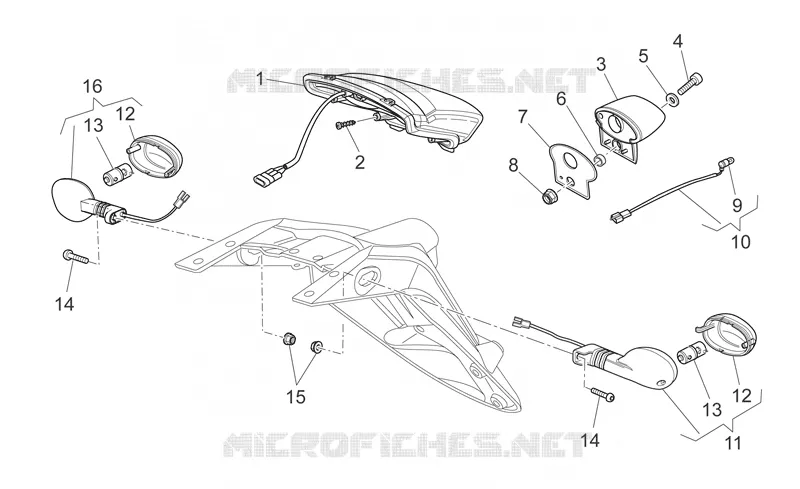

Find the detailed Taillight MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
