Transmission complete

1

Transmission complete 8/33

GU30350262

Not Available

2

Transmission housing

GU30350360

Not Available

3

Stud bolt 8x46

GU96508045

£9,11 Unit Price incl. VAT

4

Washer 8,4X13X0,8

GU14615901

£2,48 Unit Price incl. VAT

5

Nut

GU92781081

£10,21 Unit Price incl. VAT

6

Oil plug

GU12022600

£36,13 Unit Price incl. VAT

7

O-ring 20,24X2,62

GU90706203

£1,39 Unit Price incl. VAT

8

Oil level plug

GU95980214

£12,80 Unit Price incl. VAT

9

Gasket

GU10528900

£4,45 Unit Price incl. VAT

10

Gasket ring

GU90403850

£12,80 Unit Price incl. VAT

11

Gasket ring

GU12351100

£70,49 Unit Price incl. VAT

12

Roller bearing 40x55x17

GU92254340

Not Available

13

Nut

GU30356760

£26,57 Unit Price incl. VAT

14

Tap.roller bearing 25x5

GU92249227

£44,81 Unit Price incl. VAT

15

Flange

GU18352400

Not Available

16

Gasket 58,42x2,62

GU90706584

£1,60 Unit Price incl. VAT

17

Spacer

GU18355100

£16,14 Unit Price incl. VAT

18

Shim 0,1 mm

GU12355202

£2,04 Unit Price incl. VAT

18

Shim 0,15 mm

GU12355203

£1,61 Unit Price incl. VAT

19

Spacer 1,1 mm

GU19355321

£16,32 Unit Price incl. VAT

19

Spacer 1,7 mm

GU19355327

£16,18 Unit Price incl. VAT

19

Spacer 1,6 mm

GU19355326

£15,95 Unit Price incl. VAT

19

Spacer 1,3 mm

GU19355323

£14,56 Unit Price incl. VAT

19

Spacer 1,8 mm

GU19355328

£15,95 Unit Price incl. VAT

19

Spacer 1,4 mm

GU19355324

£15,95 Unit Price incl. VAT

19

Spacer 1 mm

GU19355320

£16,28 Unit Price incl. VAT

19

Spacer 1,9 mm

GU19355329

£15,95 Unit Price incl. VAT

19

Spacer 1,2 mm

GU19355322

£16,28 Unit Price incl. VAT

19

Spacer 1,5 mm

GU19355325

£16,32 Unit Price incl. VAT

20

screw

GU19357660

£1,02 Unit Price incl. VAT

21

Washer 8,4X13X0,8

GU14615901

£2,48 Unit Price incl. VAT

22

Washer

GU95007208

Not Available

23

Flange

GU17350400

£93,85 Unit Price incl. VAT

24

Gasket

GU17350700

£1,39 Unit Price incl. VAT

25

Spacer 1,1 mm

GU17355406

£12,00 Unit Price incl. VAT

25

Spacer 0,9 mm

GU17355402

£12,25 Unit Price incl. VAT

25

Spacer 1,5 mm

GU17355412

£14,65 Unit Price incl. VAT

25

Spacer 1,2 mm

GU17355408

£12,82 Unit Price incl. VAT

25

Spacer 0,8 mm

GU17355400

£11,06 Unit Price incl. VAT

25

Spacer 1 mm

GU17355404

£11,20 Unit Price incl. VAT

25

Spacer 1,3 mm

GU17355410

£14,65 Unit Price incl. VAT

26

Ball bearing 70x110x13

GU92201070

£129,37 Unit Price incl. VAT

27

Gasket ring

GU90407085

£32,02 Unit Price incl. VAT

28

Drive flange

GU17351400

Not Available

29

Bevel gear 8/33

GU30354602

£1 312,18 Unit Price incl. VAT

30

screw

GU12356300

£8,33 Unit Price incl. VAT

31

Washer 8,4X13X0,8

GU14615901

£2,48 Unit Price incl. VAT

32

Cover

GU93180245

£2,63 Unit Price incl. VAT

33

Oil unload plug M10x1

GU31003766

£15,77 Unit Price incl. VAT

34

Pin

GU03555200

£67,42 Unit Price incl. VAT

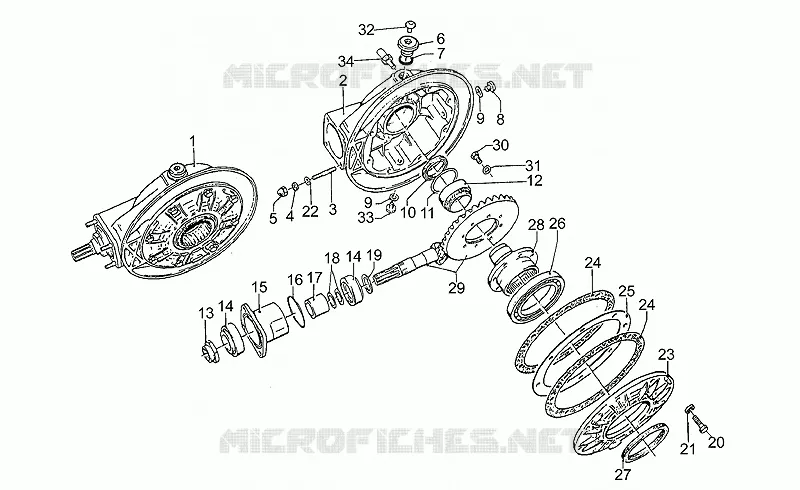

Find the detailed Transmission complete MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
