F.fork-R.shock absorber for California Black Eagle from 2011

Free shipping for all orders to United Kingdom over £150! See conditions.

F.fork-R.shock absorber

1

Front fork

977004

£1 118,42 Unit Price incl. VAT

2

Head fixing nut

GU30513401

£18,70 Unit Price incl. VAT

3

Washer

GU30516500

£5,06 Unit Price incl. VAT

4

Clearance washer

GU14516700

£22,25 Unit Price incl. VAT

5

Dust cover

GU14517000

£7,92 Unit Price incl. VAT

6

Tap.roller bearing

GU92249225

£80,94 Unit Price incl. VAT

7

plate

977398

£78,12 Unit Price incl. VAT

8

Washer 5,3x10x0,5

GU95100121

Not Available

9

O-ring

GU90706108

£1,16 Unit Price incl. VAT

10

Spacer

GU91120620

£10,73 Unit Price incl. VAT

11

Hex socket screw

GU98370622

£16,84 Unit Price incl. VAT

12

Cap nut M6x1

GU92787006

£7,98 Unit Price incl. VAT

13

Washer 6,4x10x0,7

GU14217901

Not Available

14

Screw w/ flange M6x12

AP8152277

£1,88 Unit Price incl. VAT

15

Rear shock absorber SACHS

977164

Not Available

16

Rear swing arm pin

GU03555250

Not Available

17

Washer

GU95129240

£3,78 Unit Price incl. VAT

18

Washer 6,4x30x1,5

GU95005330

£2,47 Unit Price incl. VAT

19

Decal "Aquilia"

GU01517700

£35,30 Unit Price incl. VAT

20

Plug

GU23943510

£3,34 Unit Price incl. VAT

21

Spacer

GU91180605

£10,21 Unit Price incl. VAT

22

Steering shock absorber BITUBO

883155

Not Available

23

Shock absorber plate

883157

£52,90 Unit Price incl. VAT

24

Hex socket screw M6x25

GU98370625

£5,23 Unit Price incl. VAT

25

Nut M6x1

GU92630106

£5,03 Unit Price incl. VAT

26

Washer 6,4x12

GU03013800

£1,98 Unit Price incl. VAT

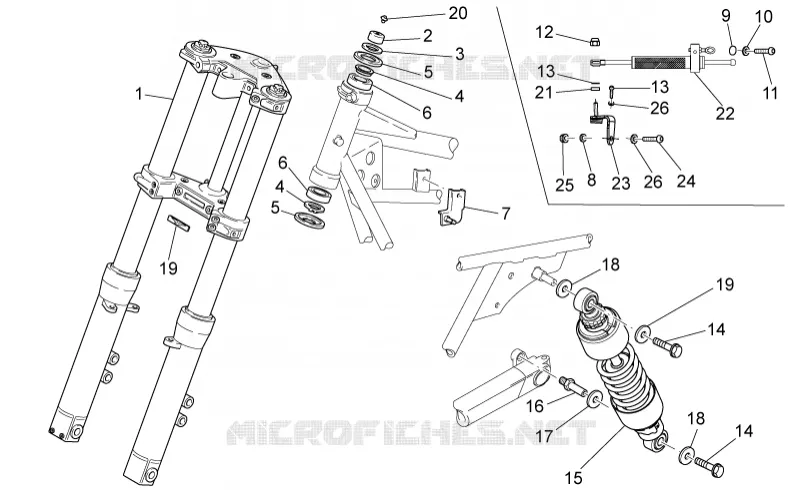

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
