Crank-case for MOTO GUZZI LAVERDA SCARABEO California Black Eagle from 2010

Free shipping for all orders to United Kingdom over £150! See conditions.

Crank-case

1

Crankcase black

976109

Not Available

2

Disc

GU12003900

Not Available

3

Stud bolt M8x66

GU96508066

£50,56 Unit Price incl. VAT

4

Washer 8,4x14,57x1,6

GU95005308

£1,26 Unit Price incl. VAT

5

Cap nut M8x1,25

GU92787008

£1,34 Unit Price incl. VAT

6

Coupling bush

GU12018900

£10,75 Unit Price incl. VAT

7

Stud bolt M8x75

GU96508075

£13,44 Unit Price incl. VAT

8

Nut M8x1,25

GU92606208

£0,94 Unit Price incl. VAT

9

Pin

GU95512081

£4,34 Unit Price incl. VAT

10

Complete flange

GU14011900

Not Available

10

Flange min.0,2 mm

GU14011901

£50,76 Unit Price incl. VAT

11

Pin

GU12012200

£15,28 Unit Price incl. VAT

12

Hex screw M8x25

GU98084425

£1,02 Unit Price incl. VAT

13

Spring washer 8x15x0,3

GU61270300

£1,70 Unit Price incl. VAT

14

Cover gasket

GU05001230

Not Available

15

Timing cover black

976450

Not Available

16

Screw w/ flange M6x25

AP8152280

£2,48 Unit Price incl. VAT

17

Screw w/ flange M6x35

AP8152282

£1,27 Unit Price incl. VAT

18

Adhesive label

GU02517700

Not Available

19

Gasket ring 28x38x7

GU90402840

£15,29 Unit Price incl. VAT

20

Flange

GU18001150

£13,20 Unit Price incl. VAT

21

Generator cover chrom.plated

978680

Not Available

22

screw

GU98310631

£1,58 Unit Price incl. VAT

23

Rubber spacer

GU19007700

£4,44 Unit Price incl. VAT

24

Sump gasket

GU14003600

£11,04 Unit Price incl. VAT

25

screw

GU98082390

£5,23 Unit Price incl. VAT

26

Oil sump black

9764511

Not Available

27

Hex socket screw M6x25

GU98682325

£1,26 Unit Price incl. VAT

28

Washer 6,15x11x0,8

GU95008206

£2,48 Unit Price incl. VAT

29

Oil unload plug

GU12003702

£12,94 Unit Price incl. VAT

30

Gasket 20,1x28x2

GU95100709

£5,29 Unit Price incl. VAT

31

Oil plug

GU30004910

£10,85 Unit Price incl. VAT

32

O-ring 17,86X2,62

GU90706178

£0,98 Unit Price incl. VAT

33

Gaskets set

GU30999060

Not Available

34

Engine oil seal kit

GU17999550

Not Available

35

Gasket ring

GU90405367

£35,53 Unit Price incl. VAT

36

Gasket

GU05011830

£10,58 Unit Price incl. VAT

37

Complete flange

GU12011400

Not Available

37

Flange min.0,4 mm

GU12011402

£61,15 Unit Price incl. VAT

37

Flange min.0,6 mm

GU12011403

£61,15 Unit Price incl. VAT

37

Flange min.0,2 mm

GU12011401

£63,46 Unit Price incl. VAT

38

Pin

GU12011700

£14,52 Unit Price incl. VAT

39

Engine black

976959

Not Available

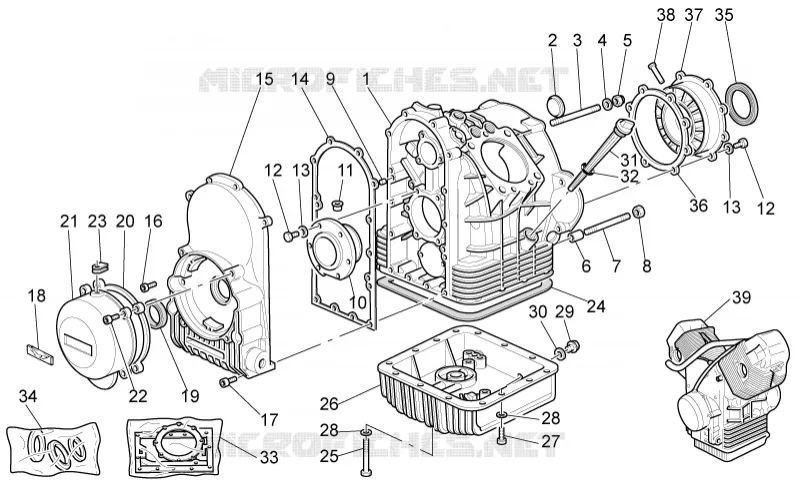

Find the detailed Crank-case MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
