Engine displacement
50
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo 2T (engine Minarelli)
5
Parts Catalog
Connecting rod group
6

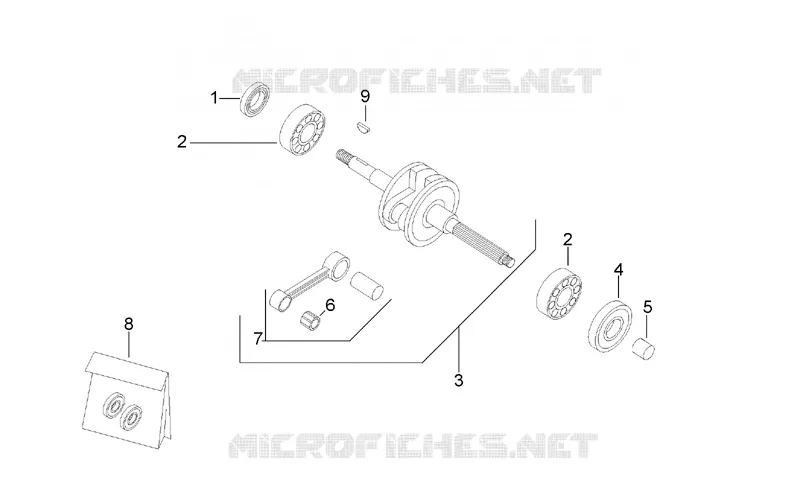

Parts Diagram
Parts Catalog
Central body III - f.brd/hng.c
by
Front body IV - Front fairing
Connecting rod group
1
2
2
3
4
5
6
7
8
9
1
Oil seal
AP8206212
Not Available
2
Bearing D20x47x14
AP8509135
Not Available
3
Con rod+g.pin brng.
AP8206501
Not Available
4
Oil seal
AP8206213
Not Available
5
Spacer D15x20x12
AP8206187
Not Available
6
Pin cage 10x14x12,5
AP8206154
Not Available
7
Connecting rod cpl.
AP8206223
Not Available
8
Oil seals - set
AP8206500
Not Available
9
Flywheel magneto key
AP8206182
£4,08 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
