Engine displacement
50
2
Model
SCARABEO
3
Year
2004
4
Trim
Scarabeo 2T (engine Minarelli)
5
Parts Catalog
Covers - kick starter
6

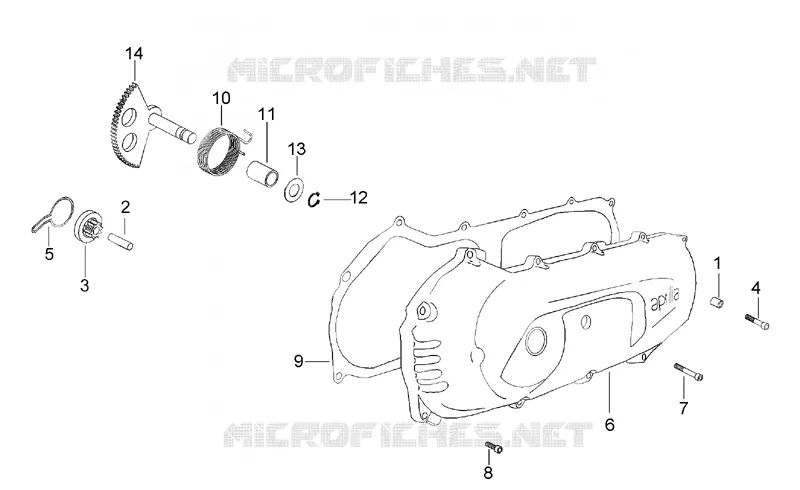

Parts Diagram
Parts Catalog
Front body VI - Front mudguard
by
Front fork II
Covers - kick starter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Pin cover D10x14
AP8206170
Not Available
2
Pin D8x32
AP8206172
Not Available
3
Sliding kick-start gear
AP8206692
Not Available
4
Hex socket screw
AP8206497
Not Available
4
Screw M6x35
AP8502567
Not Available
5
Kickstarter spring
AP8206148
Not Available
6
Kickstart cover
AP8206464
Not Available
6
Kickstart cover+black pin
AP8206694
Not Available
7
Hex socket screw
AP8206498
£3,34 Unit Price incl. VAT
7
Screw M6x45
AP8206507
Not Available
8
Hex socket screw M6x25
AP8206496
Not Available
8
Screw M6x25
AP8206508
Not Available
9
K.start cover gasket
AP8206484
Not Available
10
Lever return spring
AP8206149
Not Available
11
Kick-start shaft bush 15x20x30
AP8206152
Not Available
12
Outside circlip D15
AP8501469
£2,48 Unit Price incl. VAT
13
Blue steel washer D15,1x28x1
AP8206193
Not Available
14
Kick shaft assy
AP8206122
£44,75 Unit Price incl. VAT
