Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Front body II - Dashboard
by
Variator
Cylinder head
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
1
Stud bolt M7x1x109
AP8206493
Not Available
2
Piston pin D10x33
AP8206174
Not Available
3
Stop ring D10
AP8206176
Not Available
4
Piston ring set D40,5
AP8206220
Not Available
4
Piston ring set D40
AP8206120
Not Available
5
Piston assy D40
AP8206218
£154,24 Unit Price incl. VAT
5
Piston assy D40,5
AP8206219
Not Available
6
Cylinder base gasket
AP8206575
£5,94 Unit Price incl. VAT
7
Cylinder with piston
AP8206502
Not Available
7
Cylinder with piston
AP8176073
Not Available
8
Cylinder head gasket
AP8206487
Not Available
9
Cylinder head
AP8206460
Not Available
9
Cylinder head
AP8176074
Not Available
10
Flanged nut M7x1
AP8206491
Not Available
11
Cylinder shroud rubber
AP8206472
£4,38 Unit Price incl. VAT
12
Cylinder air shroud
AP8206465
Not Available
13
Gasket set
AP8206783
Not Available
14
Spark plug BR7HS
AP8206870
£6,60 Unit Price incl. VAT
14
Spark plug NGK BPR4HS
AP8176075
Not Available

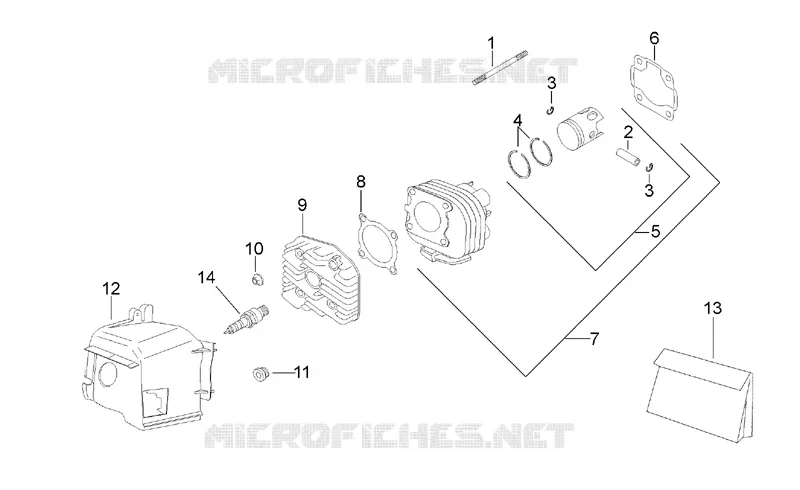

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
