Parts Catalog
Variator assembly
6
Parts Diagram
Parts Catalog
Electrical system II
by
Lock hardware kit
Variator assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Half-pulley assy., driving
AP8590028
Not Available
1
Half-pulley assy., driving
AP8580222
Not Available
2
Sliding block
AP8176297
Not Available
3
Pin roller-set
AP8176256
Not Available
3
Pin roller-set
AP8580221
Not Available
4
Ramp plate
AP8577052
Not Available
5
Spacer
AP8580075
Not Available
6
Fixed pulley
AP8575027
Not Available
6
Fixed pulley
AP8540165
Not Available
7
Washer 1x32x17
AP8550131
Not Available
8
Washer 0,5x35x17
AP8550133
Not Available
9
Nut cpl.
AP8550134
Not Available
10
Toothed cup
AP8580135
Not Available
11
Pin
AP8550285
Not Available
12
Plate
AP8176298
Not Available
13
screw
AP8176299
Not Available
14
Torque limiter
AP8575031
Not Available
15
O-ring
AP8580205
Not Available
16
V-belt
AP8575042
Not Available
16
V-belt
AP8575041
Not Available
17
Special screw
AP8575030
Not Available
18
Toothed pulley
AP8580199
Not Available
19
Bearing
AP8577060
Not Available

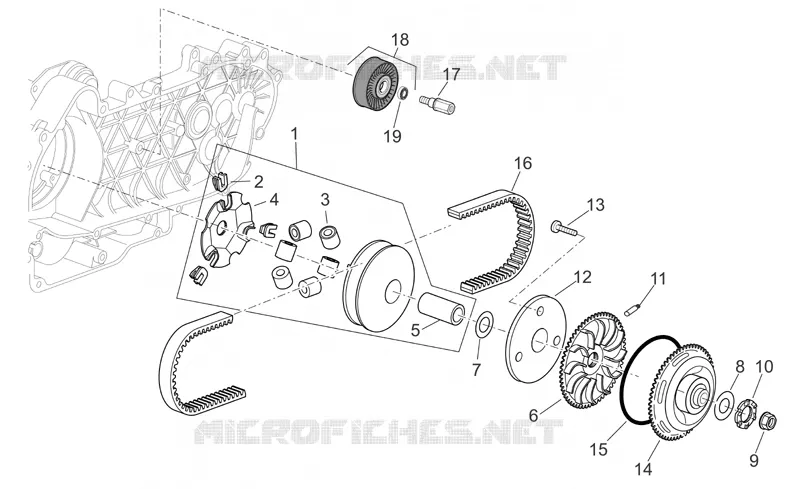

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
