Transmission complete II for V7 Racer from 2011

Free shipping for all orders to United Kingdom over £150! See conditions.

Transmission housingblack

976608

Not Available

Clearance washer

GU19351900

£10,06 Unit Price incl. VAT

Gasket ring 35x47x7

GU90403549

£33,61 Unit Price incl. VAT

Clearance washer

GU19351100

£2,22 Unit Price incl. VAT

Roller bearing 35x50x17

GU92252235

Not Available

Oil plug

GU12022600

£36,13 Unit Price incl. VAT

O-ring 20,24X2,62

GU90706203

£1,39 Unit Price incl. VAT

Oil unload plug M10x1

GU31003766

£15,77 Unit Price incl. VAT

Gasket 10x18x1,5

GU01528930

£4,21 Unit Price incl. VAT

Breather plug

GU19206501

£16,73 Unit Price incl. VAT

Spacer

GU32633560

£40,70 Unit Price incl. VAT

Stud bolt

GU96508055

£9,60 Unit Price incl. VAT

Cover

GU32350410

£155,70 Unit Price incl. VAT

Ball bearing 70x110x13

GU92201070

£129,37 Unit Price incl. VAT

Gasket ring 75x95x10

GU90407591

£61,08 Unit Price incl. VAT

GU32351410

£367,82 Unit Price incl. VAT

Stop ring

GU90353030

£1,58 Unit Price incl. VAT

Bevel gear 8/33

GU32354610

£1 123,62 Unit Price incl. VAT

screw M8x25

GU03067730

£2,47 Unit Price incl. VAT

Tap.roller bearing 25x5

GU92249227

£44,81 Unit Price incl. VAT

Spacer 1,3 mm

GU19355410

£15,95 Unit Price incl. VAT

Spacer 1,1 mm

GU19355406

£16,00 Unit Price incl. VAT

Spacer 1,5 mm

GU19355412

£15,29 Unit Price incl. VAT

Spacer 0,8 mm

GU19355400

£16,14 Unit Price incl. VAT

Spacer 1 mm

GU19355404

£15,32 Unit Price incl. VAT

Spacer 1,2 mm

GU19355408

£15,29 Unit Price incl. VAT

Spacer 0,9 mm

GU19355402

£15,97 Unit Price incl. VAT

Spacer 1,4 mm

GU19355411

£15,29 Unit Price incl. VAT

Spacer 1,6 mm

GU19355413

£16,40 Unit Price incl. VAT

Gasket

GU19350700

£4,32 Unit Price incl. VAT

Thrust washer

GU19352300

£10,73 Unit Price incl. VAT

Thrust washer

GU19353500

£7,98 Unit Price incl. VAT

screw

GU19357660

£1,02 Unit Price incl. VAT

Spring washer 8x15x0,3

GU61270300

£1,70 Unit Price incl. VAT

Spacer 1,1 mm

GU19355321

£16,32 Unit Price incl. VAT

Spacer 1,7 mm

GU19355327

£16,18 Unit Price incl. VAT

Spacer 1,6 mm

GU19355326

£15,95 Unit Price incl. VAT

Spacer 1,3 mm

GU19355323

£14,56 Unit Price incl. VAT

Spacer 1,8 mm

GU19355328

£15,95 Unit Price incl. VAT

Spacer 1,4 mm

GU19355324

£15,95 Unit Price incl. VAT

Spacer 1 mm

GU19355320

£16,28 Unit Price incl. VAT

Spacer 1,9 mm

GU19355329

£15,95 Unit Price incl. VAT

Spacer 1,2 mm

GU19355322

£16,28 Unit Price incl. VAT

Spacer 1,5 mm

GU19355325

£16,32 Unit Price incl. VAT

Spacer

GU19356801

£30,61 Unit Price incl. VAT

Gasket ring 18,77X1,78

GU90706188

£1,39 Unit Price incl. VAT

Nut

GU19356700

£21,74 Unit Price incl. VAT

Flange

GU20352421

£135,00 Unit Price incl. VAT

Roller bearing 20x47x14

GU92249220

£106,96 Unit Price incl. VAT

Spacer 1,1 mm

GU19355301

£13,12 Unit Price incl. VAT

Spacer 1 mm

GU19355300

£13,21 Unit Price incl. VAT

Spacer 1,4 mm

GU19355304

£12,42 Unit Price incl. VAT

Spacer 1,5 mm

GU19355305

£12,49 Unit Price incl. VAT

Spacer 1,6 mm

GU19355306

£12,49 Unit Price incl. VAT

Spacer 1,8 mm

GU19355308

£1,33 Unit Price incl. VAT

Spacer 1,7 mm

GU19355307

£12,49 Unit Price incl. VAT

Spacer 1,3 mm

GU19355303

£12,67 Unit Price incl. VAT

Spacer 1,9 mm

GU19355309

£12,48 Unit Price incl. VAT

Spacer 1,2 mm

GU19355302

£12,95 Unit Price incl. VAT

Spacer

GU20355121

£13,81 Unit Price incl. VAT

Shim 0,1 mm

GU19355200

£2,04 Unit Price incl. VAT

Shim 0,15 mm

GU19355202

£3,65 Unit Price incl. VAT

Gasket 58,42x2,62

GU90706584

£1,60 Unit Price incl. VAT

Gasket ring 32x47x10

GU90403251

£33,61 Unit Price incl. VAT

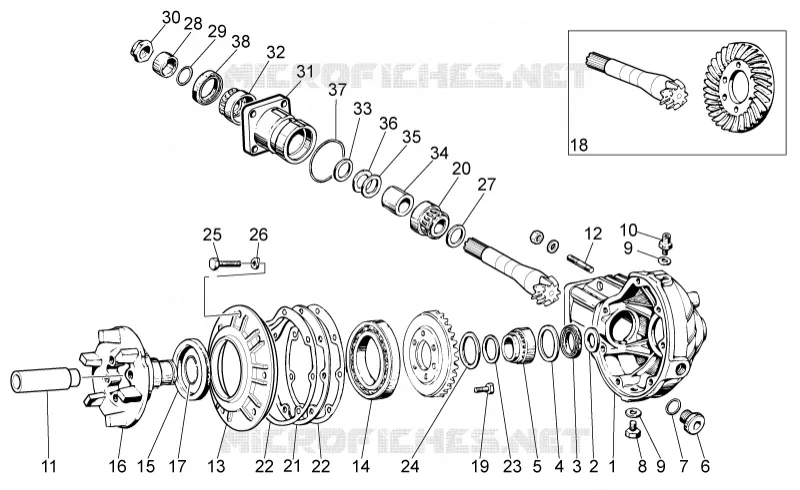

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for V7 Racer

MOTO GUZZI LAVERDA SCARABEO V7 Racer 2011

V7 Racer

Model : V7

Engine capacity : 750

Year : 2011
