Engine displacement
750
2
Model
V7
3
Year
2016
4
Trim
V7 II Stornello ABS
5
Parts Catalog
Front footrests
6

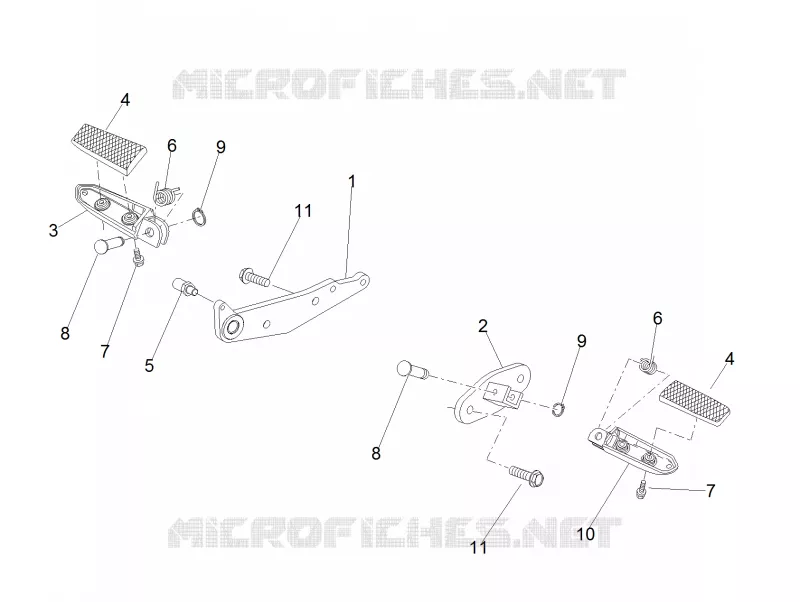

Parts Diagram
Parts Catalog
Crank-case
by
Oil pump
Front footrests
1
2
3
4
4
5
6
6
7
7
8
8
9
9
10
11
11
1
RH foot rest support
883051
£93,23 Unit Price incl. VAT
2
LH footrest support
883052
£93,23 Unit Price incl. VAT
3
RH Foot rests
886184
£67,25 Unit Price incl. VAT
4
Driver's footpeg
2R000275
£91,45 Unit Price incl. VAT
5
Limit stop
B063132
£15,38 Unit Price incl. VAT
6
Footrest return spring
AP8221277
£10,54 Unit Price incl. VAT
7
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
8
Footrest pin
CM228401
£3,17 Unit Price incl. VAT
9
Stop ring
AP8120573
£0,73 Unit Price incl. VAT
10
LH Foot rests
886185
£67,25 Unit Price incl. VAT
11
Special cap screw 8x25
2B002171
£0,86 Unit Price incl. VAT
