Engine displacement
200
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Electrical system I
6

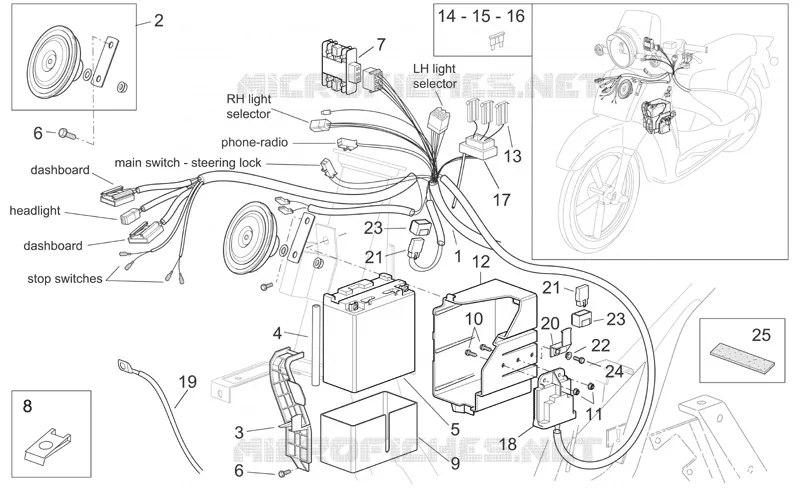

Parts Diagram
Parts Catalog
Front body - Front mudguard
by
Headlight
Electrical system I
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
23
24
25
1
Main wiring harness
AP8127616
Not Available
2
Horn
AP8127645
Not Available
3
Battery cover
AP8139268
£8,14 Unit Price incl. VAT
4
Breather pipe 4x8
AP8220263
Not Available
5
Battery
AP8112920
£115,06 Unit Price incl. VAT
6
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
7
Voltage regulator
AP8127418
Not Available
8
Clip M6
AP8102376
Not Available
9
Battery holder
AP8131838
£38,14 Unit Price incl. VAT
10
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
11
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
12
Battery holder
AP8168882
Not Available
13
Rubber fuse box
AP8120754
£10,61 Unit Price incl. VAT
14
Fuse 7,5A
AP8112244
Not Available
15
Fuse 15A
AP8112176
Not Available
16
Fuse 20A
AP8112506
Not Available
17
Rubber fuse box
AP8144091
Not Available
18
ECU
AP8127862
Not Available
18
ECU
AP8127863
Not Available
19
Battery leads-engine
AP8127431
Not Available
20
Fuse block support
AP8234094
£26,65 Unit Price incl. VAT
21
Relay 12V-30A
AP8224462
£24,32 Unit Price incl. VAT
22
Bush
AP8121032
£3,88 Unit Price incl. VAT
23
Rubber spacer *
AP8220283
£2,39 Unit Price incl. VAT
24
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
25
Adhesive sponge, black 6x60
AP8117040
£48,05 Unit Price incl. VAT
